4-port USB - 4k Hdmi Secure KVM Switch With Card Reader (psd Pp V4.0 Compliant)
ITCurry #: 90314127 | Article #: CS1144H4C-AT-G-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

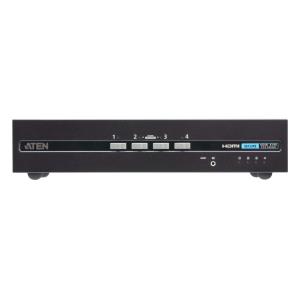

ATEN PSD PP v4.0 Secure KVM Switch CS1144H4C is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Secure KVM Switch CS1144H4C is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP).
ATEN PSD PP v4.0 Secure KVM Switch CS1144H4C provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.
To enhance security, ATEN PSD PP v4.0 Secure KVM Switch CS1144H4C only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 1 With multi–layered security, ATEN PSD PP v4.0 Secure KVM Switch CS1144H4C ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking and finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.
| Ports & interfaces | |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 8 |
| USB 2.0 Type-B ports quantity | 8 |
| Console ports | HDMI, USB A |
| Console USB ports quantity | 2 |
| Console HDMI ports quantity | 2 |
| USB hub | Yes |
| USB 2.0 Type-A hub ports quantity | 1 |
| Audio connections | Yes |
| Headphone outputs | 4 |
| RJ-11 ports quantity | 1 |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| Wired remote switch | Yes |
| LED indicators | Yes |
| Push button | Yes |
| Display | |
| Built-in display | No |
| Power | |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 7.2 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 163.9 mm |
| Depth | 335 mm |
| Height | 65.5 mm |
| Weight | 2.34 kg |
| Packaging data | |
| Package width | 131 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package volume | 16480.4047212 cmü |
| Package weight | 2.98 kg |
| Packaging content | |
| Cables included | AC |
| Manual | Yes |
| Logistics data | |
| Master (outer) case net weight | 7.02 kg |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 555 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case gross weight | 9.86 kg |
| Master (outer) case volume | 60144.9821784 cmü |
| Country of origin | Taiwan |
| Warranty | |
| Base Warranty | Non Non |
