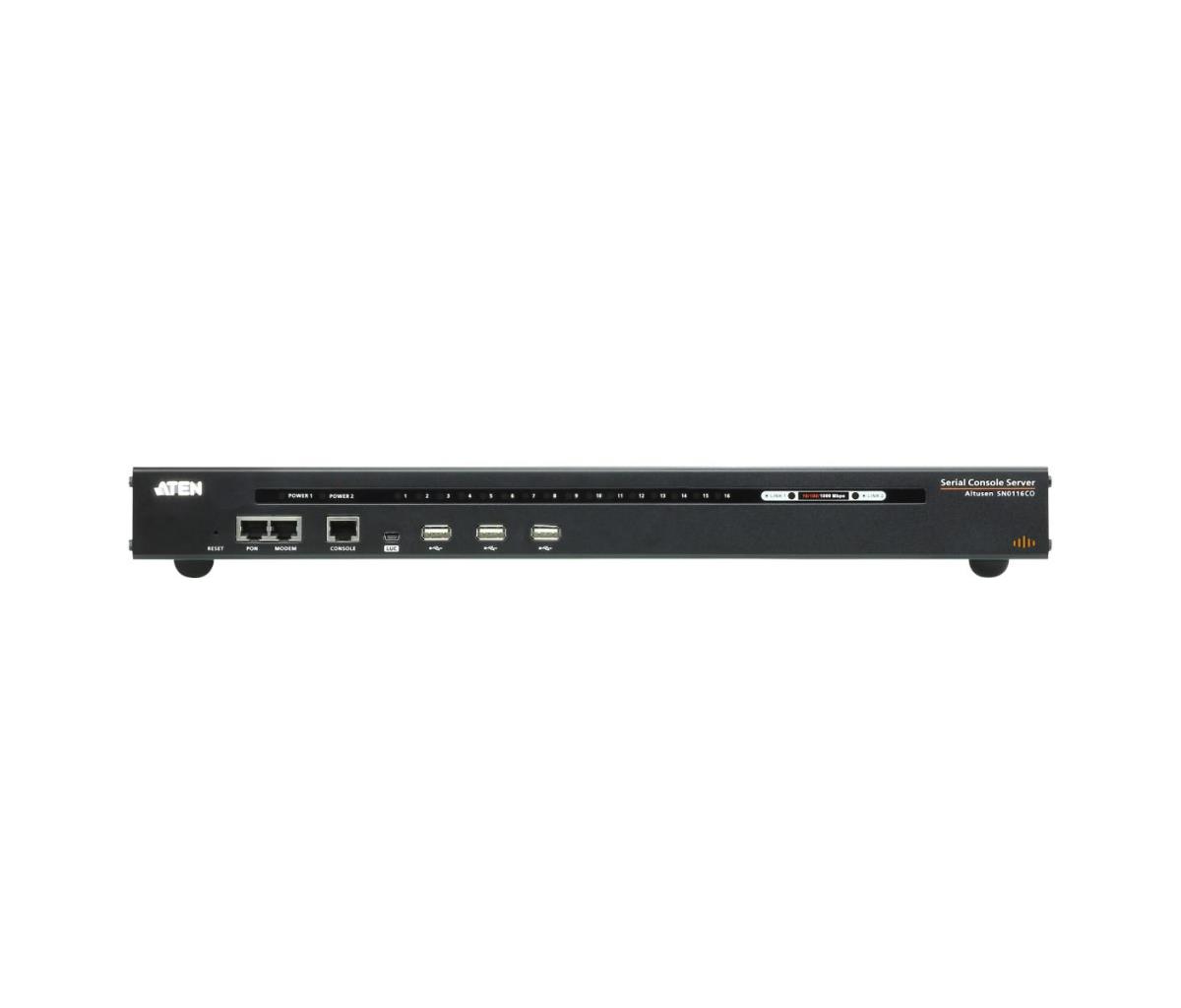

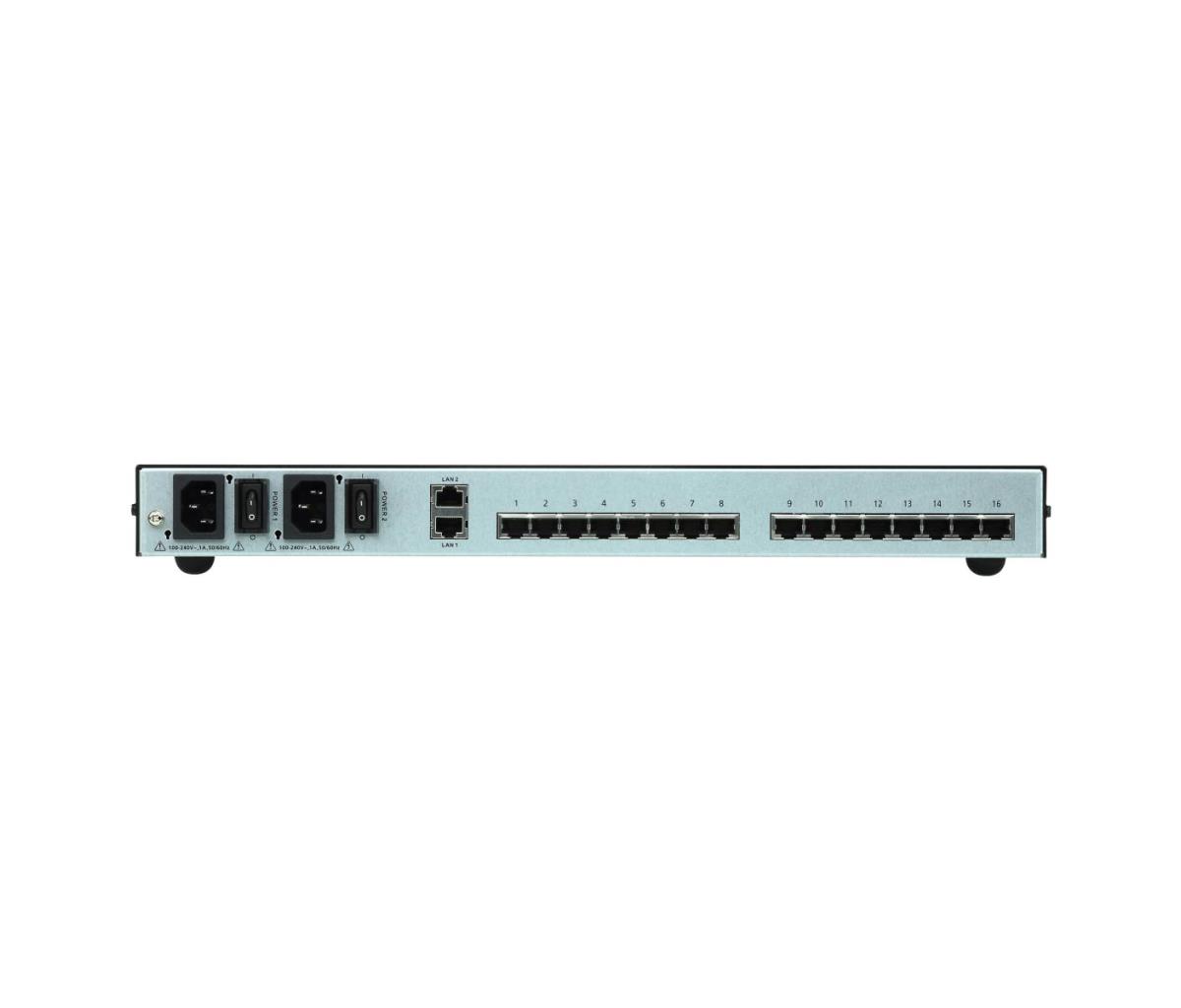

16-port Serial Console Server W/dual Pow
ITCurry #: 90313964 | Article #: SN0116CO-AXA-G
slide 2 of 3
Price:
2335.80
Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Related products
slide 6 to 10 of 15
Product Information
ATEN launches a new generation of Serial Console Servers, the SN01xxCO Series (SN0108CO / SN0116CO / SN0132CO / SN0148CO). With dual power / LAN in SN01xxCO models, they integrate cutting edge technologies to provide convenient installation, secure serial device access, easy management and comprehensive control for data centers.
1x SN0116CO Serial Console Server
1x LIN6-04U1-M18G Laptop USB Console Cable
2x LIN2-418K-E12G Power Cords (AC models)
1x KC06-0029-B02G Mounting Kit
2x 0X12-0017-301G Lok-U-Plug
1x 0X12-0017-401G Lok-U-Plug Installation Tool
1x Foot Pad Set (4 pcs.)
1x User Instructions
| Technical details | |
| Package height | 130 mm |
| Package width | 453 mm |
| Product colour | Black |
| Package weight | 6.28 kg |
| Package depth | 575 mm |
| Ports & interfaces | |
| Console port | RJ-45/Mini-USB |
| Serial ports quantity | 16 |
| USB 2.0 ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
| Input current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Certificates | |
| Certification | RoHS |
| Weight & dimensions | |
| Dimensions (WxDxH) | 329.8 x 437.2 x 44 mm |
| Weight | 5.29 kg |
| Logistics data | |
| Master (outer) case net weight | 5.29 kg |
| Master (outer) case width | 453 mm |
| Master (outer) case length | 575 mm |
| Master (outer) case height | 130 mm |
| Master (outer) case gross weight | 6.28 kg |
| Products per master (outer) case | 1 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
