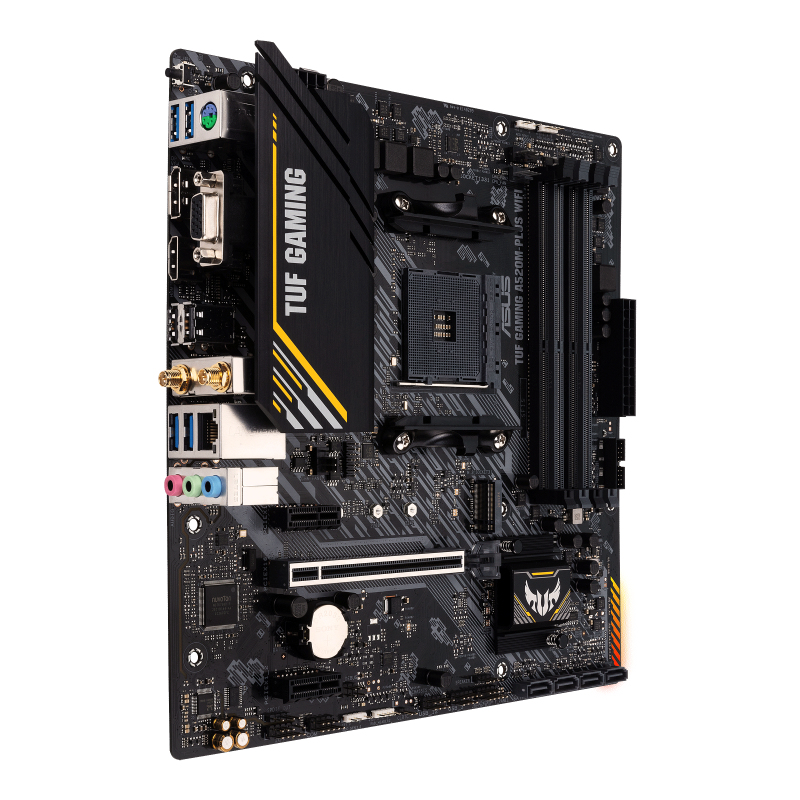

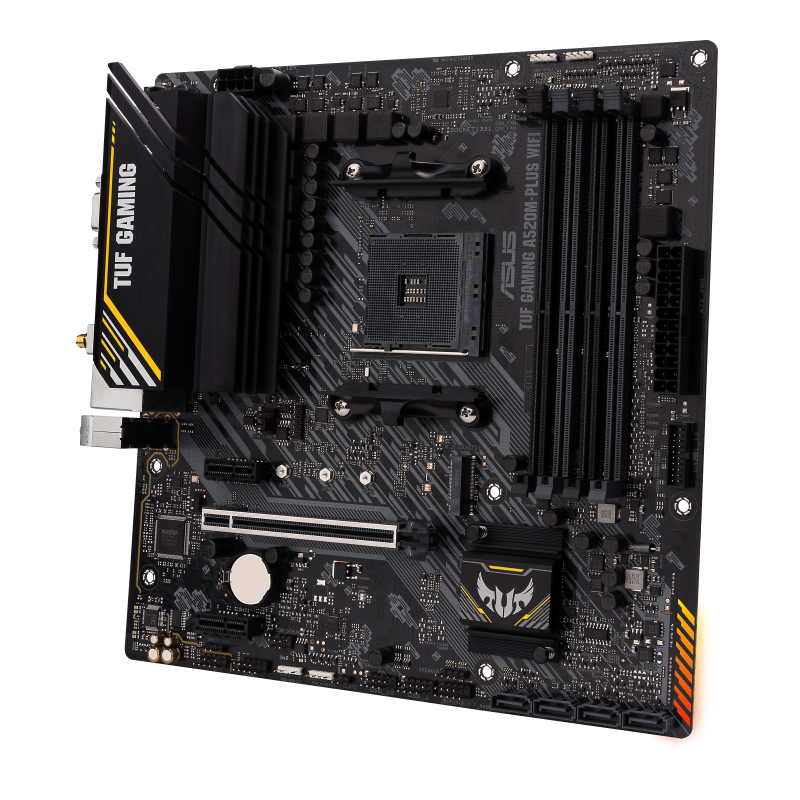

Motherboard TUF GAMING A520M-PLUS Wi-Fi / AMD Ryzen A520 DDR4 128GB mATX
ITCurry #: 8881V901 | Article #: 90MB17F0-M0EAY0-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
DURABLE. STABLE. RELIABLE.
TUF Gaming A520M-Plus WIFI distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.
ROCK-SOLID PERFORMANCE
With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory, TUF Gaming A520M-Plus WIFI is the perfect foundation for your next high-core-count battle rig.
Stack Cool 3+
2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures and provide more headroom to push CPUs beyond stock speeds.
TUF COMPONENTS
TUF CHOKES
Certified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability.
TUF CAPACITORS
Proprietary capacitors provide up to 20% greater temperature tolerance and 5X-longer lifespan.
Digi+ VRM
The integrated Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.
Cooler by design
1. VRM HEATSINK
A large, high-mass heatsink with extensive surface that covers the VRM and choke areas improves heat dissipation.
COMPREHENSIVE FAN CONTROLS
TUF Gaming A520M-Plus WIFI features comprehensive fan controls that can be configured via Fan Xpert 2+ utility or via the award-winning ASUS UEFI BIOS.
32Gbps M.2 Support
M.2 slot supports up to 2280 and data-transfer speeds of up to 32 Gbps via x4 PCI Express 3.0 bandwidth, enabling quicker boot-up and app load times with OS or application drives.
USB 3.2 GEN 1 TYPE A
Numerous USB ports support gaming rigs loaded with peripherals, including USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases.
EASY PC DIY
TUF Gaming motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
Build with confidence
TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
SafeSlot Core+
SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.
ESD guards
ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV.
KEYBOARDS AND MOUSE CONNECTORS
Additional on-circuit ESD transient-voltage-suppression.
VGA PROTECTION
Additional on-circuit ESD TVS diodes to protect VGA output functionality.
USB CONNECTORS
TVS diode for surface-mount and dual in-line package.
TUF LANGuard
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.
DRAM overvoltage protection
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
Stainless-steel back I/O panel
TUF Gaming motherboards have a corrosion-resistant stainless-steel back I/O panel bonded with chromium oxide to provide a 3X-longer lifespan versus traditional panels. With this protective feature, TUF Gaming motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.
BIOS FlashBack™
BIOS FlashBack™ is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS FlashBack™ port and press the button. Updates can even be performed without having memory or a CPU installed.
Armoury Crate
Armoury Crate is a new software utility designed to give you centralized control of supported gaming products. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for every compatible device in your arsenal and synchronize them with Aura Sync for uni?ed system lighting effects. The software also provides control of settings for a select and growing number of products, including keyboard and mouse preferences as well as fan speeds, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and news areas to help you stay in touch with the gaming community.
IMMERSIVE GAMING
TUF Gaming A520M-Plus WIFI provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.
802.11ac Wi-Fi
TUF GAMING A520M-PLUS WIFI has 802.11ac Wi-Fi with 1x1 2.4/5GHz antennas for up to 433.3Mbps transfer speeds to ensure that every connected user experiences the best wireless and online speeds!
Outshine the Competition
A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.
Addressable Gen 2 RGB Header
The addressable Gen 2 RGB headers are now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 5000 Series |
| Supported processor sockets | Socket AM4 |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC ?ompatibility | ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4466,4600,4800 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA III |
| Number of storage drives supported | 5 |
| RAID levels | 0, 1, 10 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 3840 x 2160 pixels |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| WiFi-AP antenna jack | 1 |
| USB connector type | USB Type-A |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wake-on-LAN ready | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN controller model | Realtek RTL8821CE |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Features | |
| Motherboard chipset | AMD A520 |
| Audio chip | Realtek ALC887 / Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10 x64 |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Clear CMOS jumper | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Height | 67 mm |

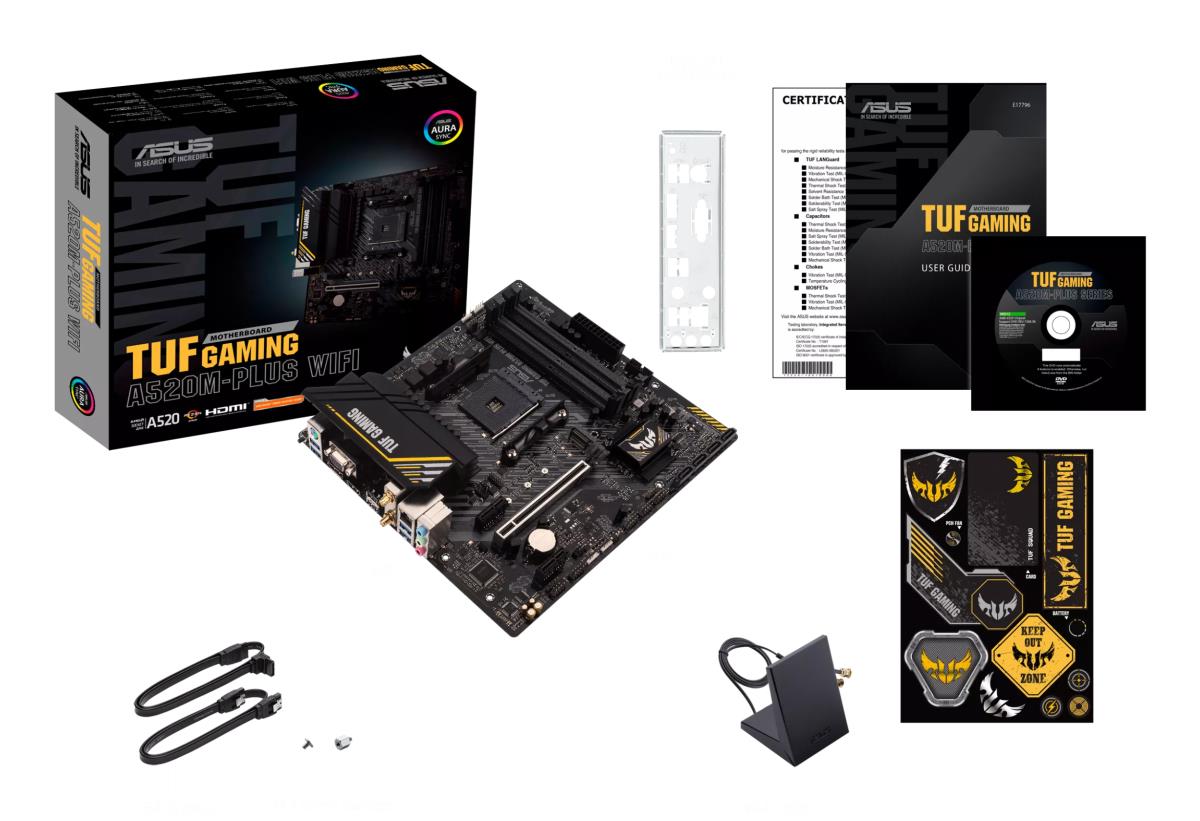

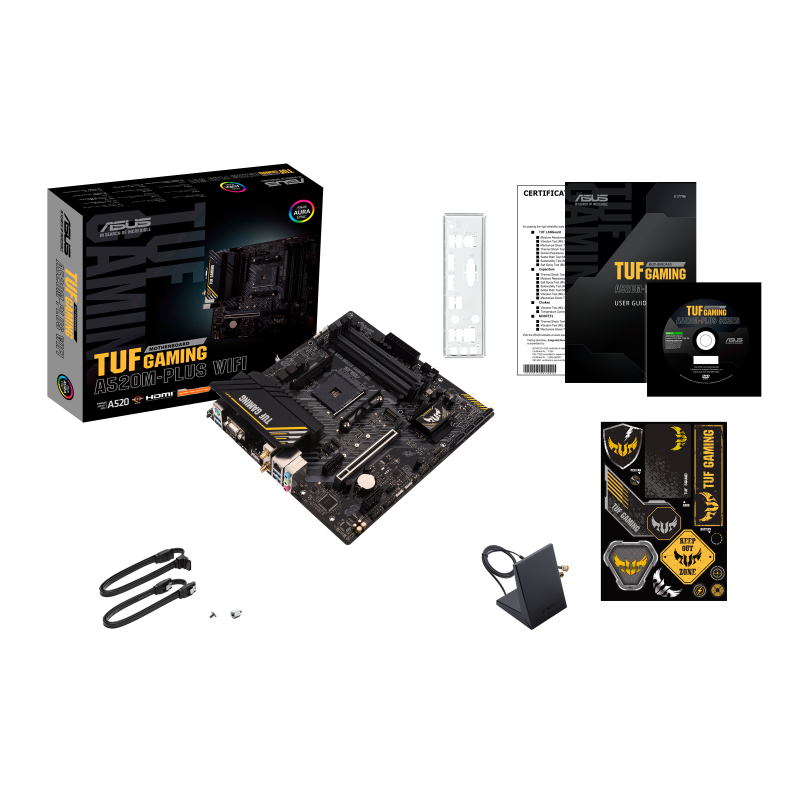

| Packaging content | |
| Cables included | SATA |
| Drivers included | Yes |
| Other features | |
| Weight | 900 g |
| Warranty | |
| Base Warranty | Non Non |
