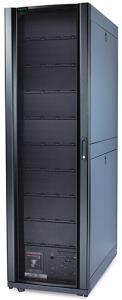

Symmetra Px48 Battery Frame With 9 Battery Modules & Startup
ITCurry #: 02808293 | Article #: SYCFXR48-9-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Battery modules connected in parallel
Delivers higher availability through redundant batteries.
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.
Battery | |
Battery technology | Sealed Lead Acid (VRLA) |
Battery capacity | 31104 Ah |
Design | |
Form factor | 42U |
Product colour | Black |
Certification | CE,EN/IEC 62040-2,EN/IEC 62040-3,EN/IEC 62040-1-1,UL 1778 |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 øC |
Storage temperature (T-T) | -15 - 45 øC |
Operating relative humidity (H-H) | 0 - 95% |
Storage relative humidity (H-H) | 0 - 95% |
Operating altitude | 0 - 999.9 m |
Weight & dimensions | |
Weight | 1252 kg |
Package weight | 1351 kg |
Other features | |
Battery type | VRLA |
Dimensions (WxDxH) | 600 x 1070 x 1991 mm |
Package dimensions (WxDxH) | 848 x 1210 x 2134 mm |
Warranty | |
Base Warranty | Non Non |
