Product Information
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1000VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 2 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 1 kVA |
| Output power | 800 W |
| Waveform | Sine |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Input frequency | 50/60 Hz |
| Output frequency regulation | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 600 J |
| Efficiency | 98.2% |
| Emergency Power Off (EPO) | Yes |
| Noise level | 40 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Audible alarm modes | Low battery alarm, Overload alarm |
| Auto-restart | Yes |
| Ports & interfaces | |

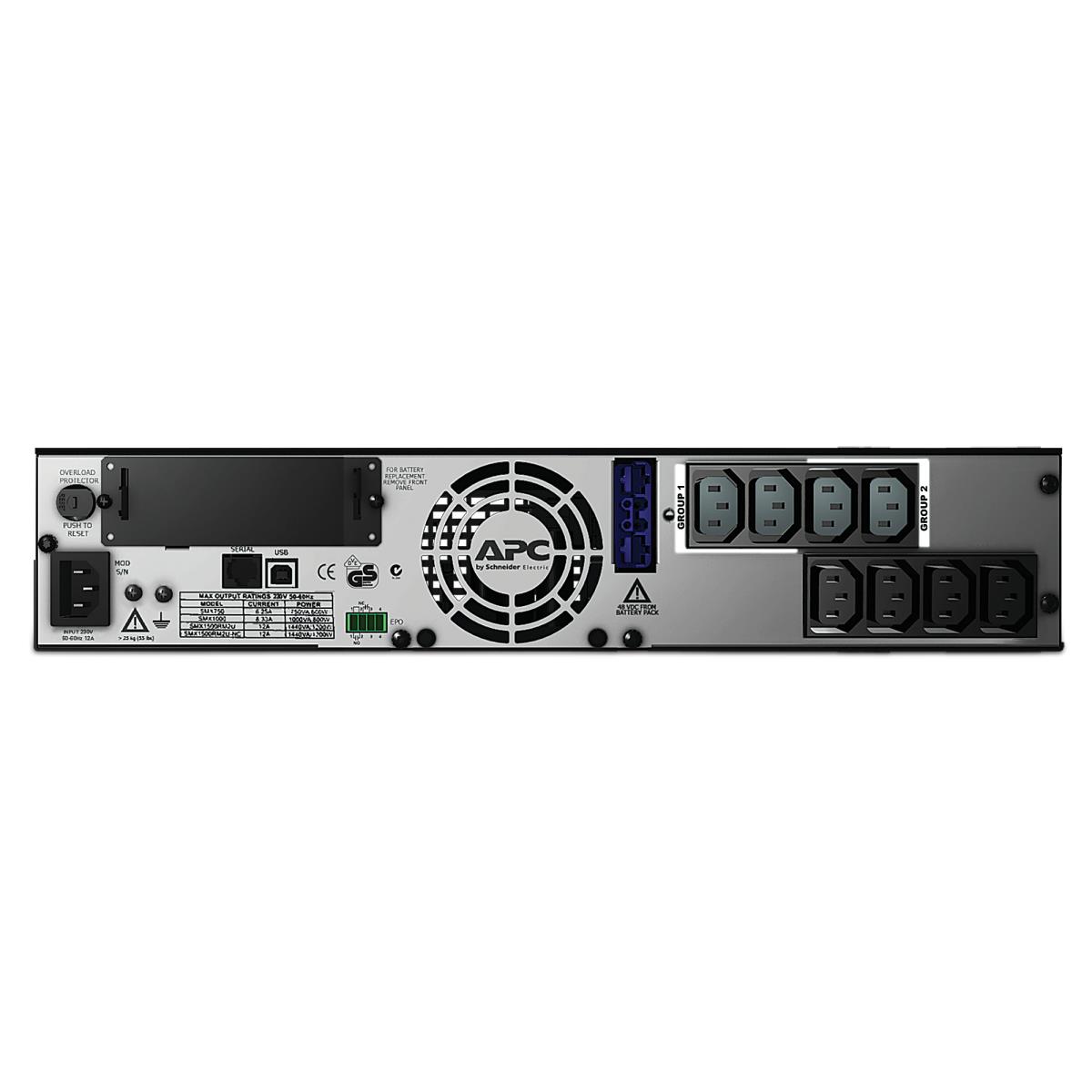

| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| USB port | Yes |
| SmartSlot | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 299 VAh |

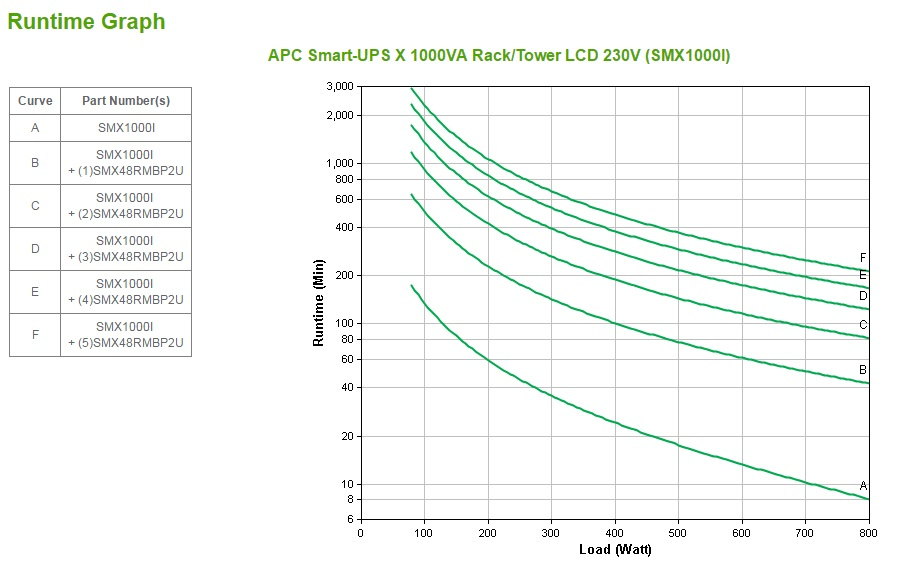

| Typical backup time at full load | 8.1 min |
| Typical backup time at half load | 24.2 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Hot-swap battery | No |
| Automatic battery test | Yes |
| Cold start | Yes |
| Design | |

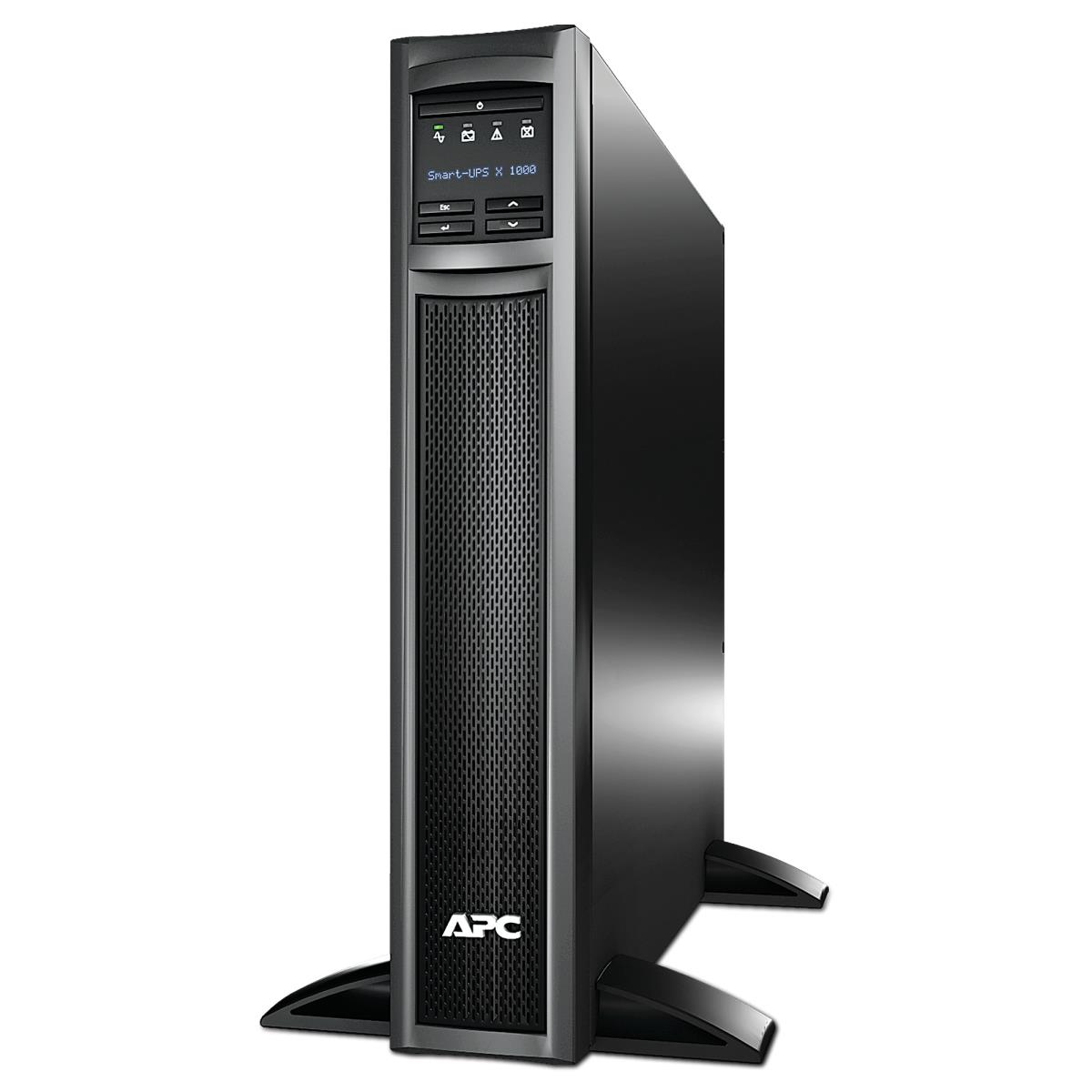

| Form factor | Rackmount/Tower |
| Rack capacity | 2U |
| Cable length | 1.83 m |
| Product colour | Black |
| LED indicators | Yes |
| Certification | CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, PEP, EOLI |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -15 - 45 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | Green Premium |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 490 mm |
| Height | 89 mm |
| Weight | 22.9 kg |
| Package width | 589 mm |
| Package depth | 620 mm |
| Package height | 246 mm |
| Package weight | 27.3 kg |
| Packaging data | |
| Rack mount kit | Yes |
| Cables included | RS-232, USB cable |
| Quick installation guide | Yes |
| Software CD | Yes |
| Logistics data | |
| Products per pallet | 8 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Packaging content | Removable support feet |
| Warranty | |
| Base Warranty | Non Non |
