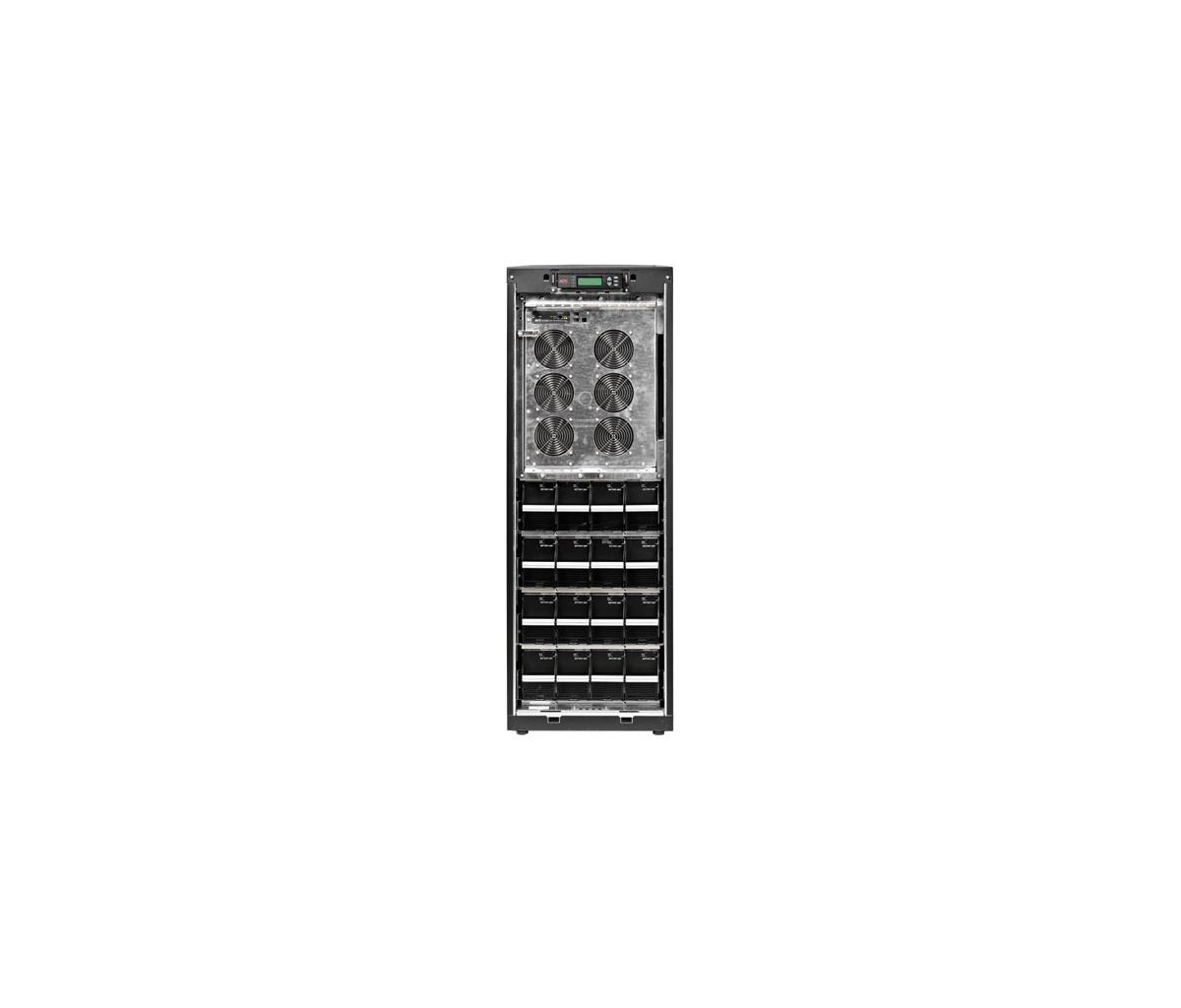

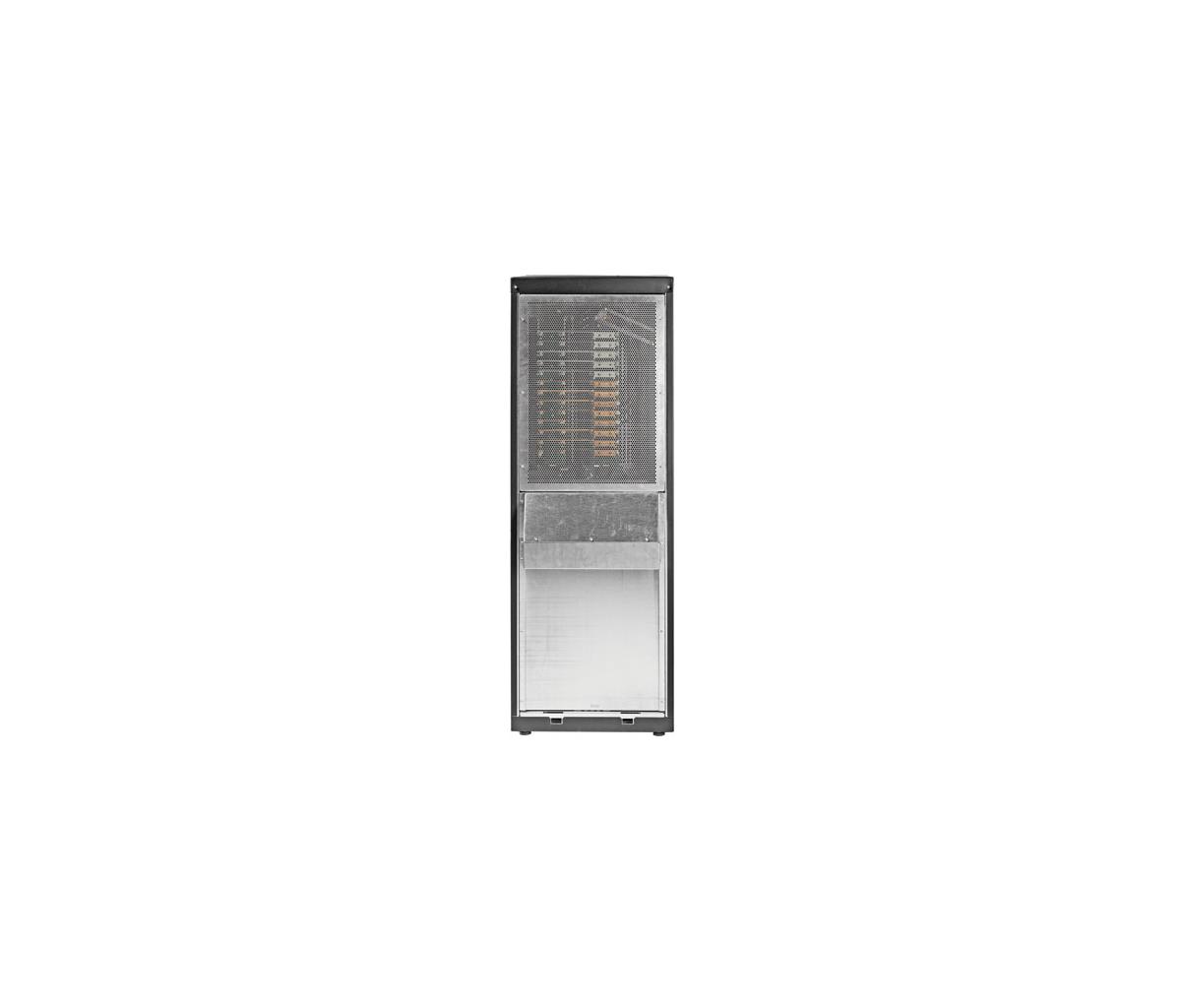

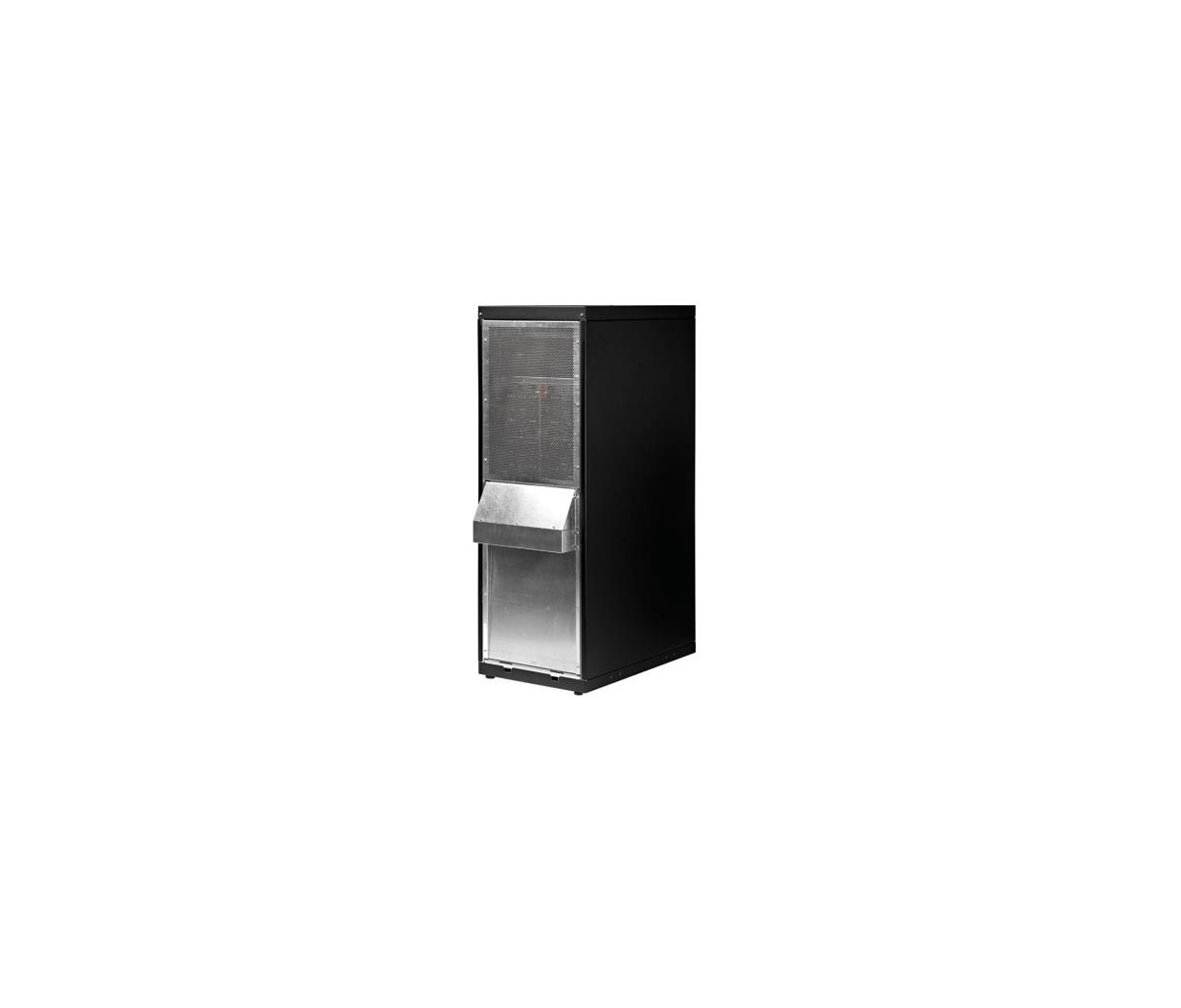

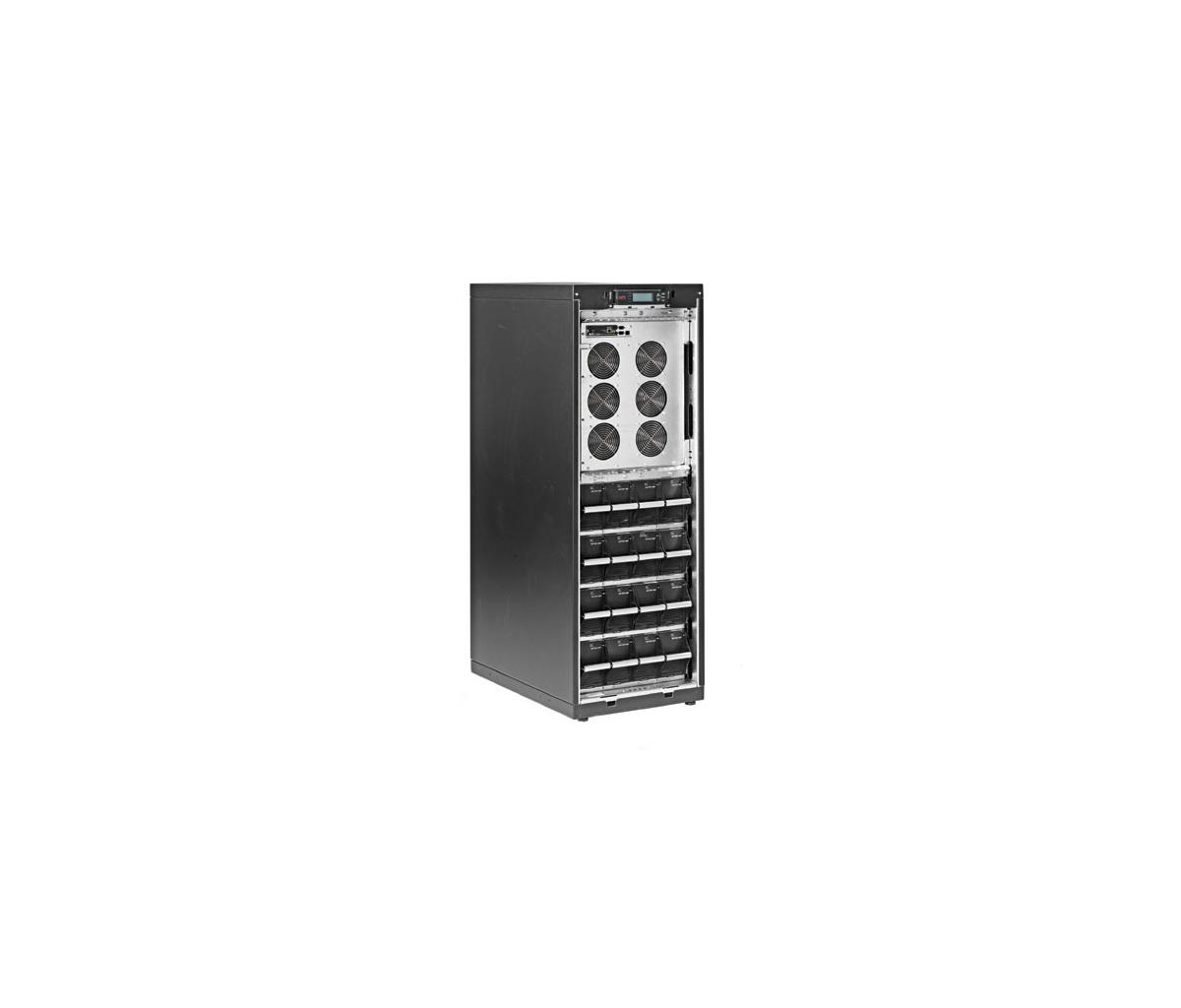

Smart-UPS VT 10kVA 208V w/1 Batt Mod Exp to 4, Start-Up 5X8, Int Maint Bypass, Parallel Capable
ITCurry #: 0280L745 | Article #: SUVTP10KF1B4S
slide 2 of 5
Related products
slide 7 to 11 of 14
Product Information
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 10 kVA |
| Output power | 8000 W |
| Waveform | Sine |
| Input operation voltage (min) | 165 V |
| Input operation voltage (max) | 240 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 120 V |
| Output operation voltage (max) | 208 V |
| Efficiency | 93% |
| Noise level | 54 dB |
| Audible alarm(s) | Yes |
| Ports & interfaces | |
| AC outlets quantity | 1 AC outlet(s) |
| Serial ports quantity | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 5 h |
| Design | |
| Form factor | Tower |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -50 - 40 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 999.9 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Width | 523 mm |
| Depth | 813 mm |
| Height | 1499 mm |
| Weight | 506.8 kg |
| Packaging data | |
| Package weight | 537.7 kg |
| Other features | |
| Battery type | VRLA |
| Interface | DB-9 RS-232, SmartSlot |
| Warranty | |
| Base Warranty | Non Non |
Smart-UPS VT 10kVA 208V w/1 Batt Mod Exp to 4, Start-Up 5X8, Int Maint Bypass, Parallel Capable
7346.19
