Product Information

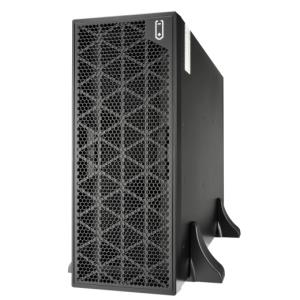

This product is part of the Smart-UPS battery systems, providing extended runtime to SRT mission critical applications. This extendable-run battery pack provides extended runtime during prolonged power outages. Embedded monitoring at the cell, module, and cabinet level provides data of battery runtime and health. It is a lead-acid battery with a 2-year warranty. Its dimensions are 683mm (depth) x 432mm (height) x 130mm (width) and weighs 91.0kg. Ideal for Smart-UPS on-line mission critical applications. It conforms to OSHPD.
Features | |
Product colour | Black |
Battery voltage | 192 V |
Number of batteries included | 1 pc(s) |
Technical details | |
Compliance certificates | RoHS |
Weight & dimensions | |
Weight | 91 kg |
Width | 432 mm |
Height | 130 mm |
Depth | 682 mm |
Packaging data | |
Package width | 600 mm |
Package height | 420 mm |
Package depth | 1000 mm |
Package weight | 105.5 kg |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 øC |
Storage temperature (T-T) | -15 - 45 øC |
Operating relative humidity (H-H) | 0 - 95% |
Storage relative humidity (H-H) | 0 - 95% |
Operating altitude | 0 - 3000 m |
Non-operating altitude | 0 - 15000 m |
Logistics data | |
Harmonized System (HS) code | 85044095 |
Warranty | |
Base Warranty | Non Non |
