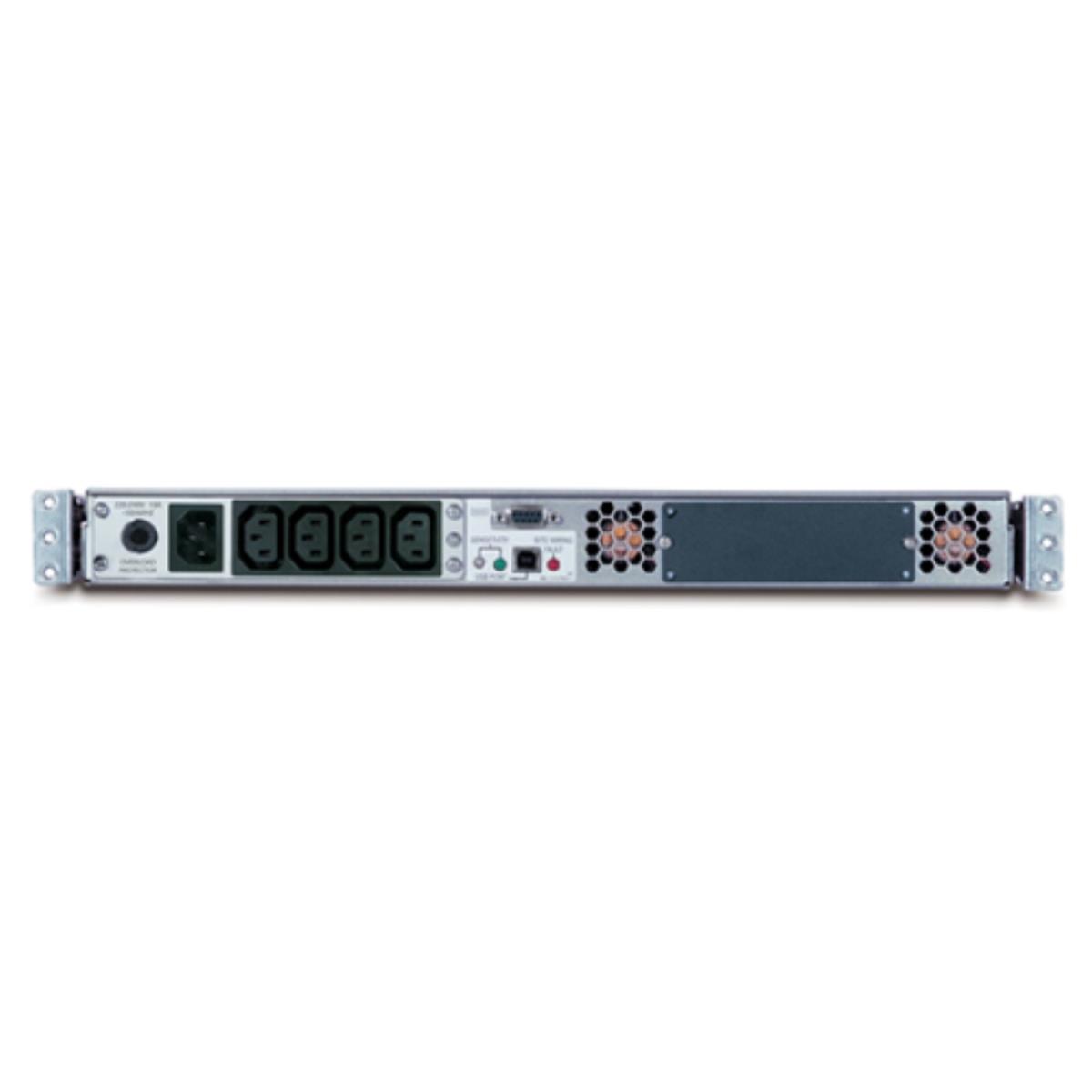

Smart UPS 750va USB & Serial Rm 1u 230v
ITCurry #: 02802734 | Article #: SUA750RMI1U
slide 3 of 2
Related products
slide 6 to 10 of 15
Product Information
Smart-UPS
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 0.75 kVA |
| Output power | 480 W |
| Waveform | Sine |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Output frequency | 57/63 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 480 J |
| Noise level | 55 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Auto-restart | Yes |
| Ports & interfaces | |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 4 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| SmartSlot | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 7.1 min |
| Typical backup time at half load | 23.6 min |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 1U |
| Product colour | Black, Grey |
| LED indicators | Battery replacement |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -15 - 45 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 660 mm |
| Height | 44 mm |
| Weight | 21.8 kg |
| Packaging data | |
| Rack mount kit | Yes |
| Cables included | RS-232, USB cable |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
Smart UPS 750va USB & Serial Rm 1u 230v
679.31
