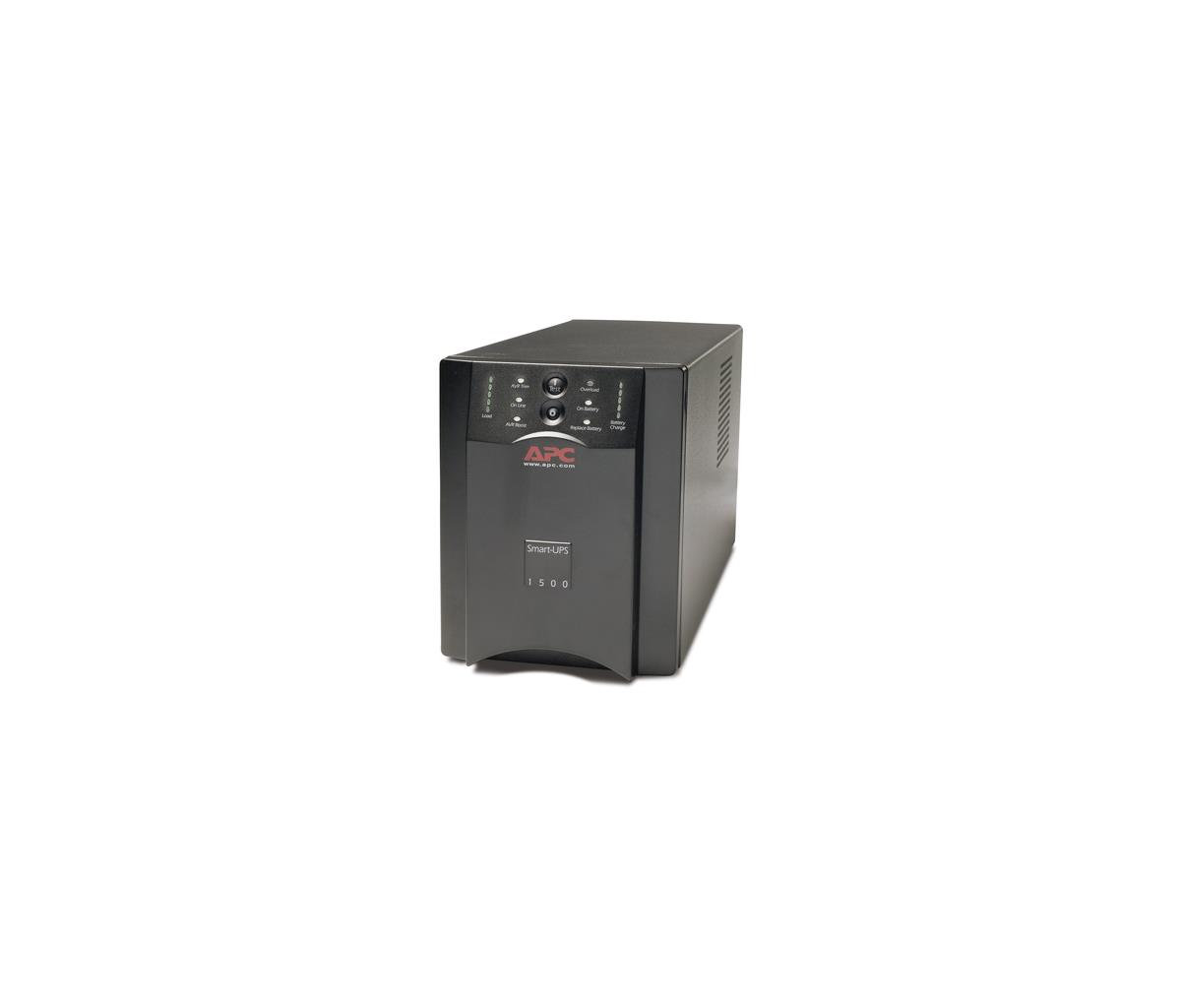

Smart-UPS 1500va USB 120v Shipboard
ITCurry #: 02805213 | Article #: SUA1500X93-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
- Gives higher application availability by correcting low and high voltage conditions without using the battery.
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Automatically starts up the connected equipment upon the return of utility power.
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Provides temporary battery power when the utility power is out.
- Ensures clean, uninterrupted power to protected equipment when generator power is used.
- Provides remote management of the UPS over the network.
- Customize UPS capabilities with management cards.
- Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
- Quickly understand unit and power status with visual indicators.
- Provides management of the UPS via a serial port.
- Warns when a battery is not available to provide backup power.
| Features | |
| Output power capacity | 1.44 kVA |
| Output power | 980 W |
| Input frequency | 60 Hz |
| Surge energy rating | 320 J |
| Emergency Power Off (EPO) | Yes |
| Noise level | 45 dB |
| Audible alarm(s) | Yes |
| Battery | |
| Typical backup time at full load | 6.7 min |
| Typical backup time at half load | 23.9 min |
| Replacement battery cartridge | RBC7 |
| Design | |
| Cable length | 1.83 m |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -15 - 45 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Weight | 24.1 kg |
| Package weight | 26.4 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Interface | DB-9/RS-232 |
| Input connection type | NEMA 5-15P |
| Dimensions (WxDxH) | 170 x 439 x 216 mm |
| Nominal output voltage | 120 V |
| Nominal input voltage | 120 V |
| Package dimensions (WxDxH) | 330 x 584 x 381 mm |
