Product Information

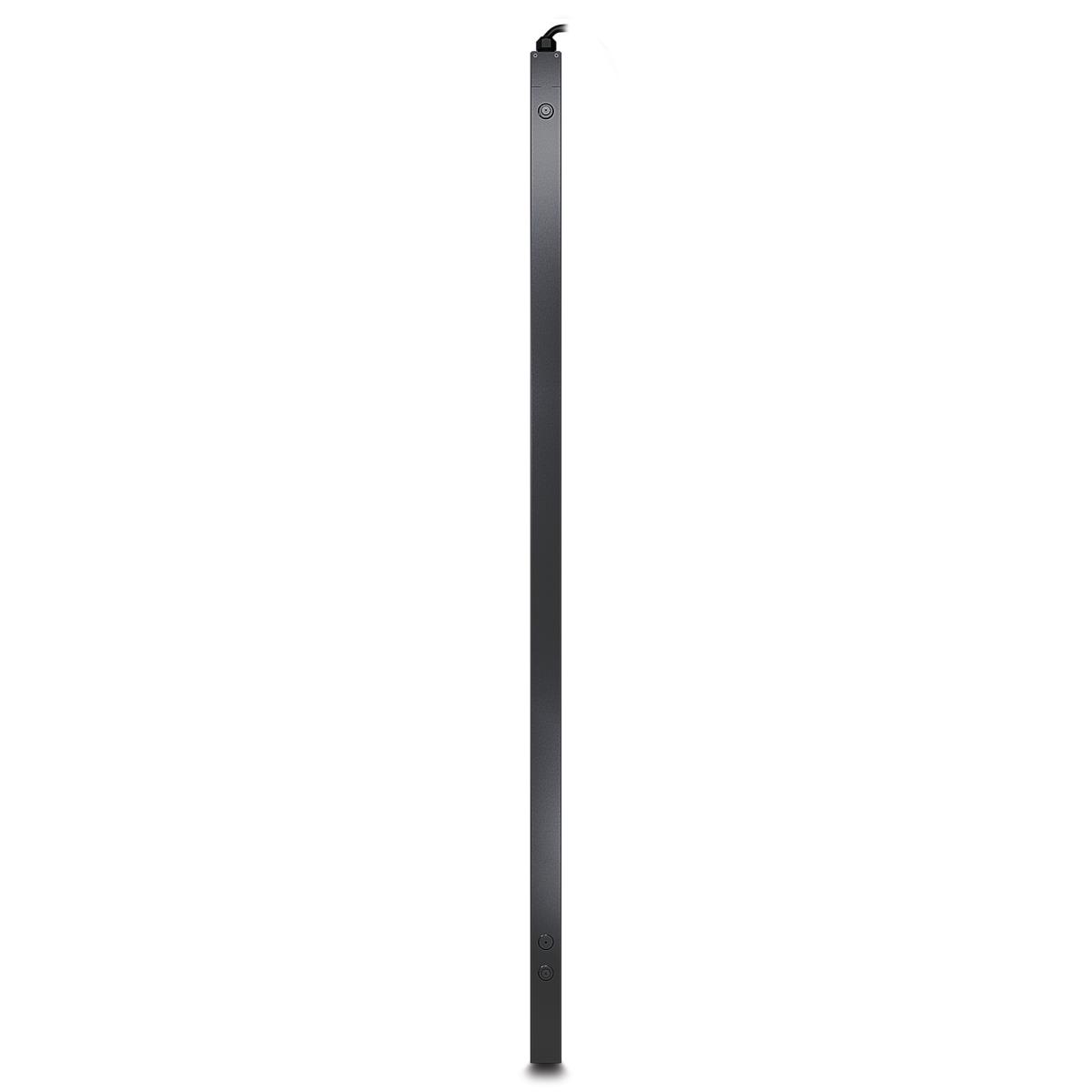

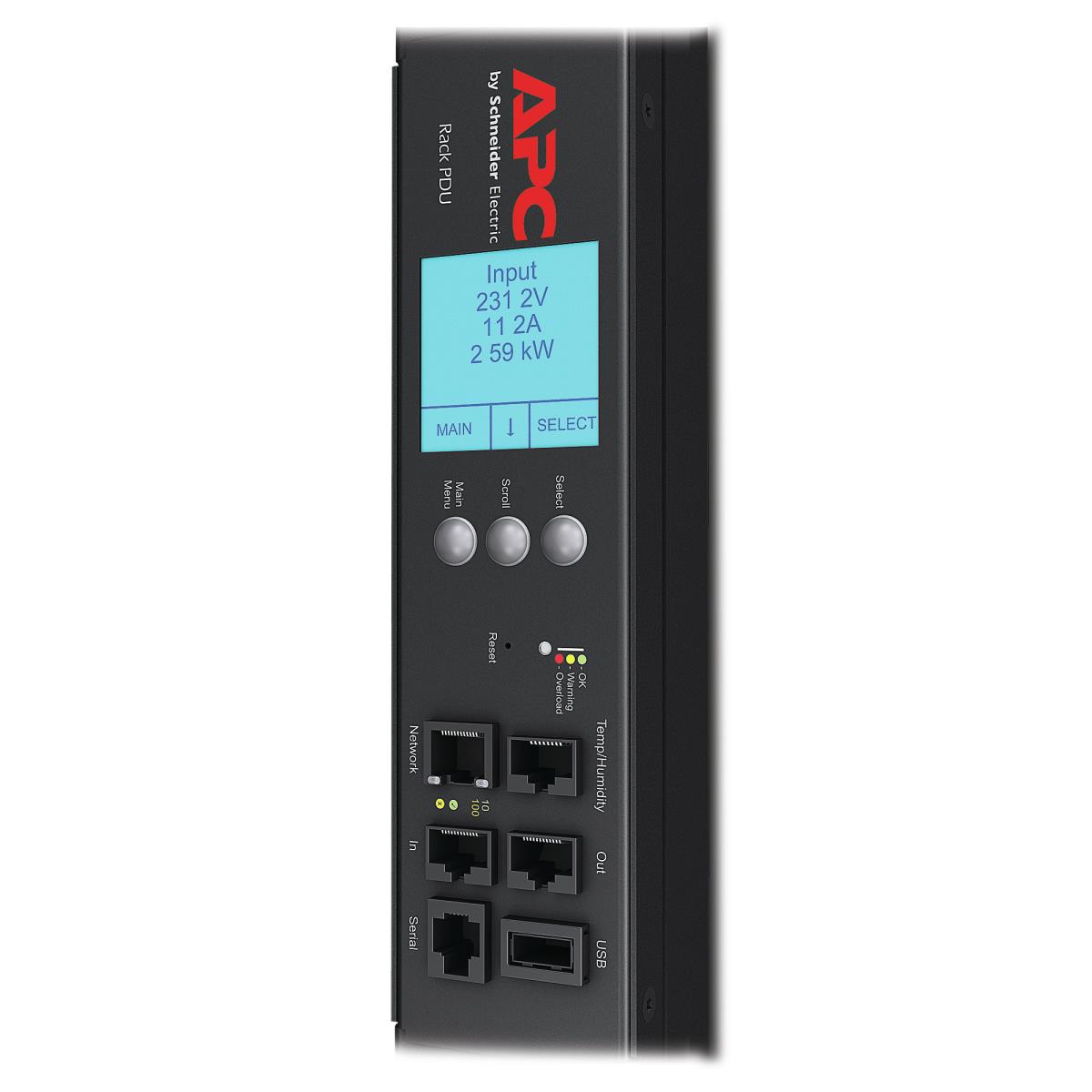

APC Switched Rack PDU , Input: 400V 3PH , Input Connections: IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E , Cord Length: 6 feet ( 1.83 meters ) , Output: 208V, 230V , Output Connections: IEC 320 C13,IEC 320 C19.
Includes: Installation guide, Rack Mounting brackets, Safety guide, Sample locking IEC power cord, Serial configuration cable.
Design | |
PDU types | Metered, Switched |
Rack capacity | 0U |
Product colour | Black |
Ports & interfaces | |
AC outlets quantity | 24 AC outlet(s) |

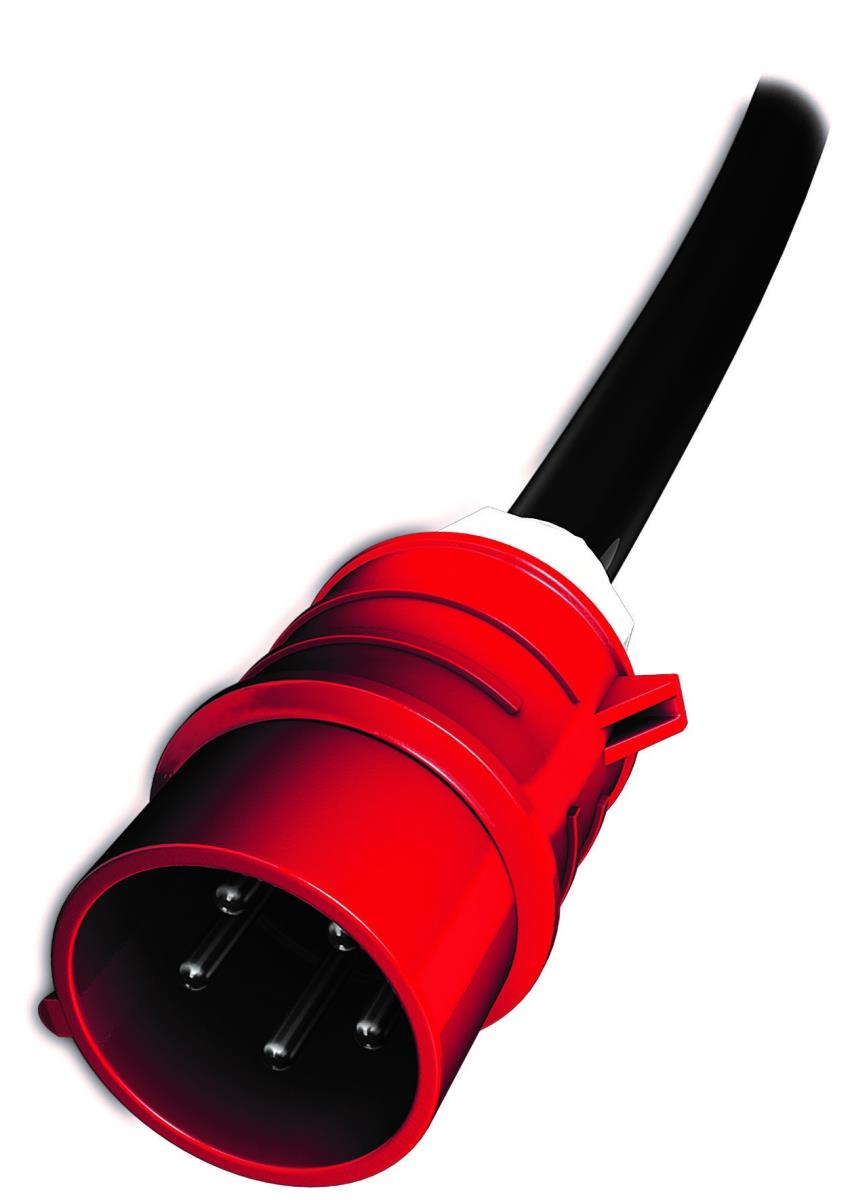

Input connection type | IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E |
Output connections | (21) IEC 320 C13, (3) IEC 320 C19 |
Features | |
Cable length | 1.83 m |
Power | |
Nominal input voltage | 400 V |
AC input frequency | 50 - 60 Hz |
Maximum input current per phase | 20 A |
Maximum total current draw per phase | 20 A |
Weight & dimensions | |
Dimensions (WxDxH) | 56 x 46 x 1791 mm |
Weight | 7 kg |
Packaging data | |
Package dimensions (WxDxH) | 165 x 114 x 2002 mm |
Package weight | 8.95 kg |
Operational conditions | |
Operating temperature (T-T) | -25 - 65 øC |
Storage temperature (T-T) | -5 - 45 øC |
Operating relative humidity (H-H) | 5 - 95% |
Storage relative humidity (H-H) | 5 - 95% |
Warranty | |
Base Warranty | Non Non |
