Rack PDU 2G Metered Zerou 23kw 240v (30) C13 & 912) C19
ITCurry #: 0280E212 | Article #: AP8888-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

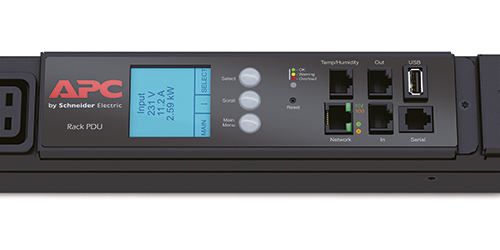

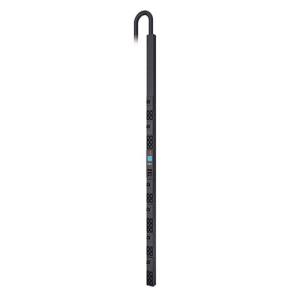

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
| Design | |
| PDU types | Metered |
| Rack capacity | 0U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Display | LCD |
| Ports & interfaces | |
| AC outlets quantity | 42 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |

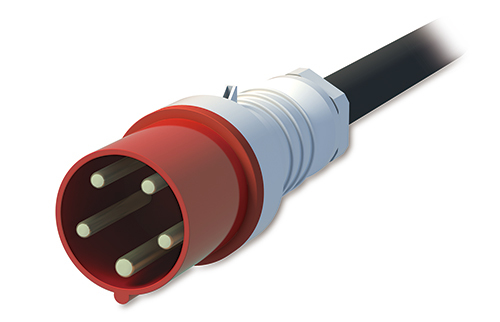

| Input connection type | IEC 309 60A 3P+N+E |
| Features | |
| Cable length | 1.83 m |
| Certification | cUL, EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC-15 A, UL, VCCI A |
| Power | |
| Nominal input voltage | 400 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 40 A |
| Nominal output voltage | 240 V |
| Output voltage | 240 V |
| Load capacity | 23000 VA |
| Maximum input current per phase | 40 A |
| Maximum total current draw per phase | 32 A |
| Power protection features | Overload |
| Weight & dimensions | |
| Dimensions (WxDxH) | 56 x 51 x 1829 mm |
| Weight | 10.1 kg |
| Packaging data | |
| Package dimensions (WxDxH) | 221 x 112 x 2149 mm |
| Package weight | 14.1 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 øC |
| Storage temperature (T-T) | -25 - 65 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Warranty | |
| Base Warranty | Non Non |
