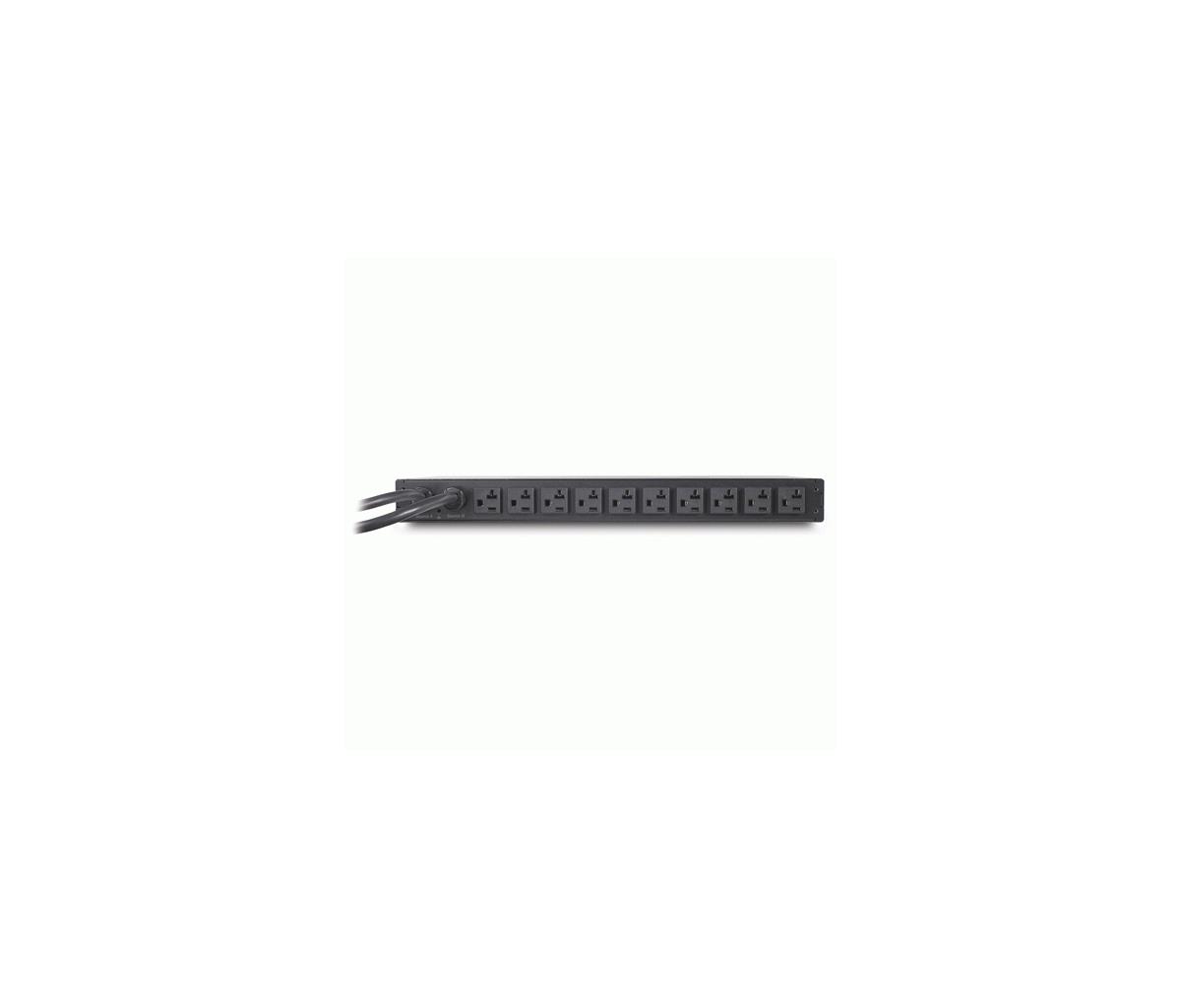

Rack-mount Transfer Switch - Rack Ats/ 120v/ 20a/ L5-20 In/ (10) 5-20r Out
ITCurry #: 0280A555 | Article #: AP7752-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Agility
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Availability
Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Dual Input Power Sources
Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternative power source.
Information Displays
Indicates the status of the AC sources powering the units, as well as indicates which source is set as the primary source and which source is currently supplying power to the load. This provides a visual depiction of the power flow from the input to the load. This allows the user to quickly glance at the power flow and status of the input sources without connecting to the unit.
| Ports & interfaces | |
| Input connection type | NEMA L5-20P |
| Output connections | 10x NEMA 5-20R |
| Features | |
| Cable length | 2.44 m |
| Certification | EN 55022 Class A,FCC Part 15 Class A RoHS 7b Exemption |
| Power | |
| AC input frequency | 47/63 Hz |
| Nominal output voltage | 120 V |
| Maximum input current per phase | 20 A |
| Maximum total current draw per phase | 20 A |
| Weight & dimensions | |
| Dimensions (WxDxH) | 432 x 229 x 44 mm |
| Weight | 4.98 kg |
| Packaging data | |
| Package dimensions (WxDxH) | 600 x 349 x 114 mm |
| Package weight | 6.75 kg |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 øC |
| Storage temperature (T-T) | -25 - 65 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Warranty | |
| Base Warranty | Non Non |
