Rack Air Distribution Unit 2u Input:208v/230v 50/60 Hz
ITCurry #: 02802759 | Article #: ACF002-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

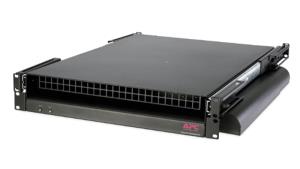

The Rack Air Distribution Unit is a 2U fan unit that connects into the raised floor and pulls supply air directly into the enclosure. This prevents the conditioned air from mixing with warmer room air before reaching the equipment. This minimizes temperature differences between the top and bottom of the enclosure, while also preventing hot exhaust air recirculation to the inlet of the enclosure. The product is recommended for rack enclosures with loads greater than 1.5kW and can provide airflow for loads up to 3.5kW. It is also ideal for enclosures in raised floor environments where underfloor air distribution is inadequate. The product is recommended for rack enclosures with loads greater than 1.5kW and can provide airflow for loads up to 3.5kW. It is also ideal for enclosures in raised floor environments where underfloor air distribution is inadequate.
| Performance | |
| Suitable location | Computer case |
| Type | Fan |
| Airflow | 579 mü/h |
| Power | |
| Voltage | 230 V |
| Weight & dimensions | |
| Depth | 89 mm |
| Weight | 19 kg |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
