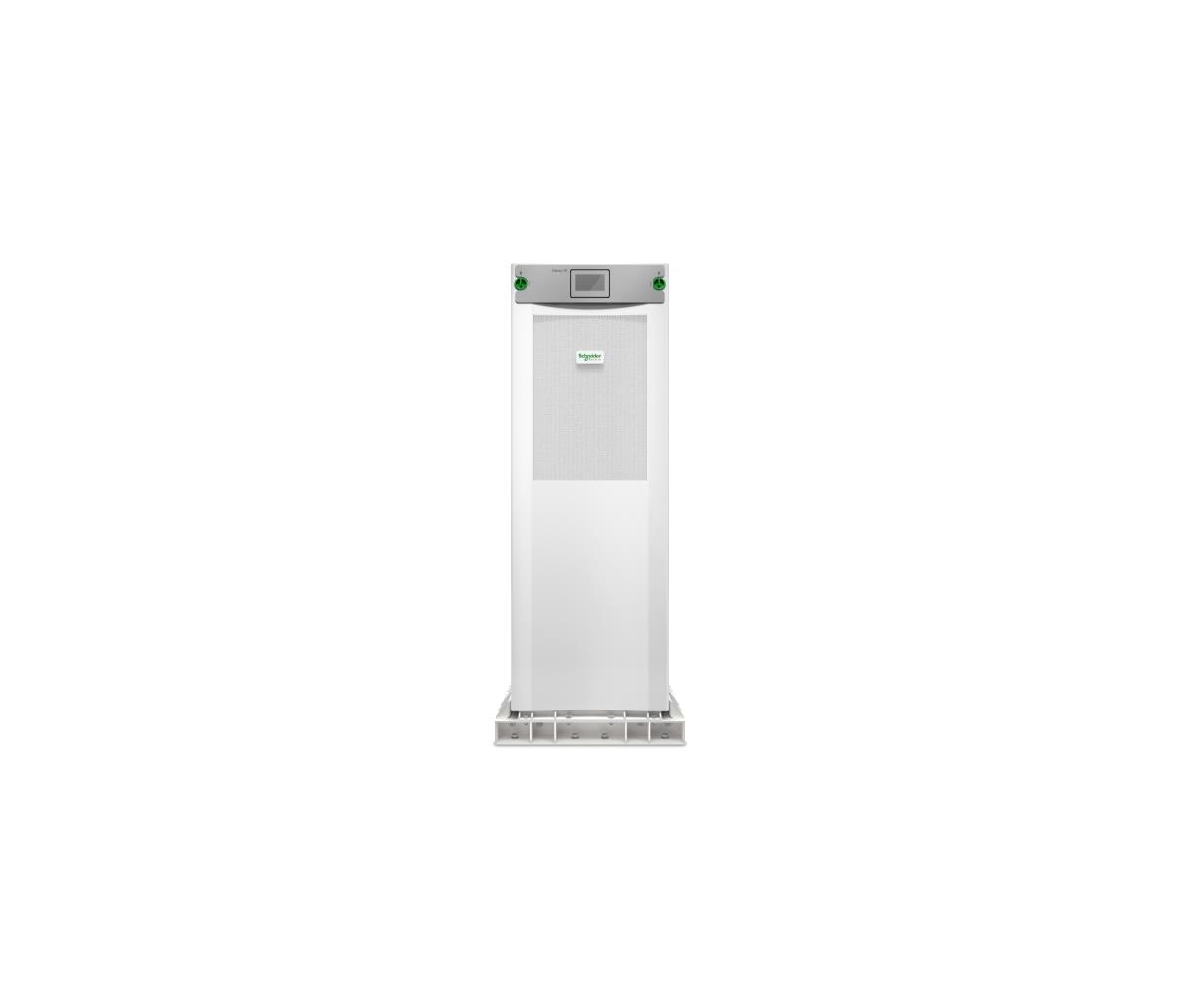

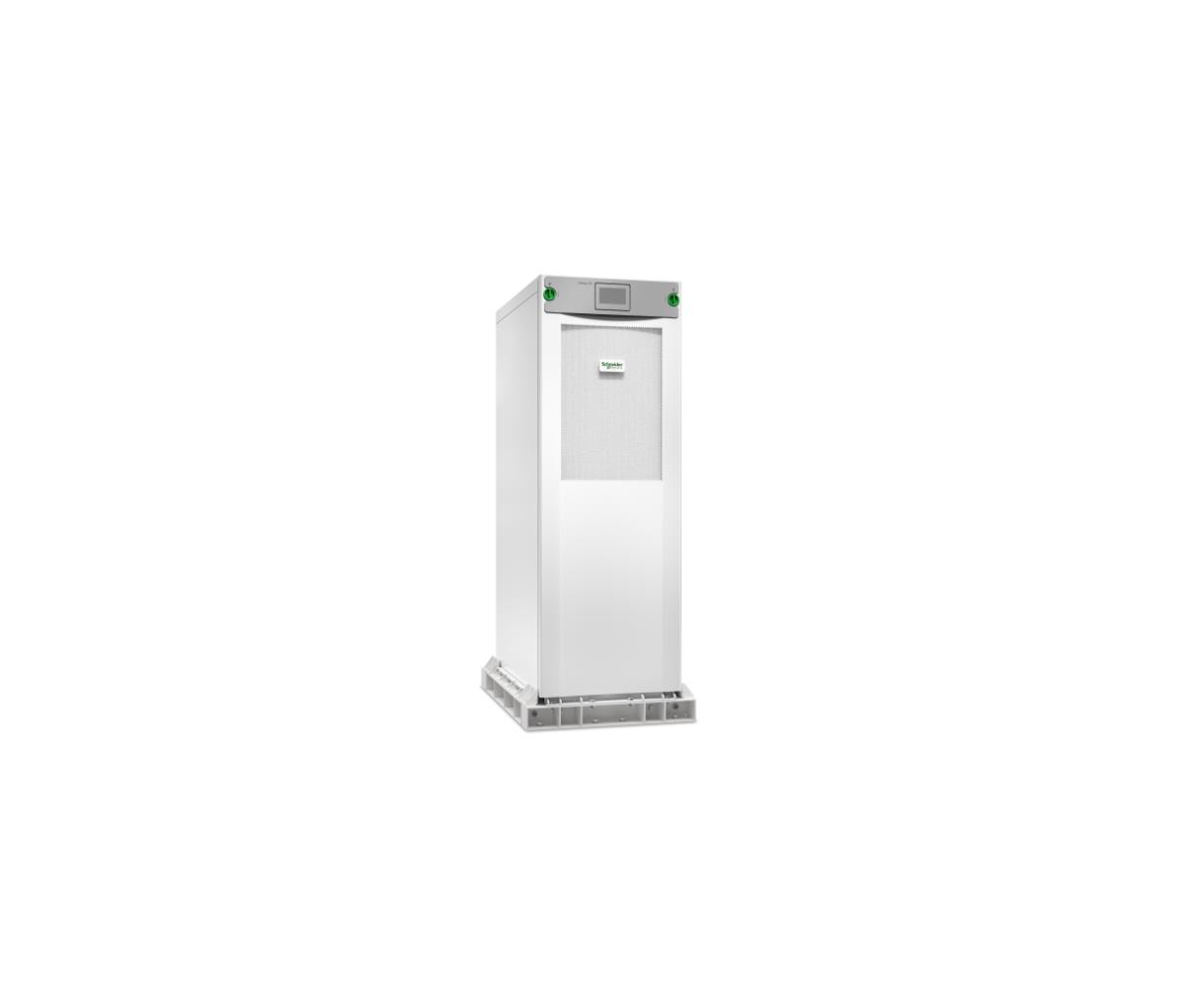

Galaxy VS UPS 60kW 400V for External Batteries, Halogen-Free Cables, Marine Certified, Start-Up 5x8
ITCurry #: 0280K736 | Article #: GVSUPS60KMHS-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Highly efficient, easy-to-deploy 60kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and halogen-free cables. Marine certified.
Built-in backfeed protection
Full built-in backfeed contactor ensures that no electricity is sent back to the grid.
Embedded Network Management Card
Allows you to remotely manage alert thresholds and monitor your UPS over EcoStruxure IT, Web, SNMP, or Modbus TCP and Modbus RTU.
Flexible DC bus
Optimizes battery sizing and supports a wide range of energy storage technologies, including VRLA, Li-ion, and NiCd batteries.
Parallel-capacity capability
Increases total power capacity by using multiple uninterruptible power supplies simultaneously.
Parallel-redundant capability
Powers the connected equipment with multiple uninterruptible power supplies and redundant fan design to increase system redundancy.
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
Modular UPS design
Provides design redundancy and fast serviceability with improved mean time to repair, via self-diagnosing, field-replaceable modules.
Multiple levels of service offers
With the option of packages or individual service components, our services are structured to allow you to pick and choose what you would like Schneider Electric to do for you.
EcoStruxure IT Expert
From your smartphone or computer, connect to our cloud-based, do-it-yourself monitoring system that collects, organizes, and distributes critical alerts and key information in real time, providing a unified view of even highly distributed physical infrastructure environments. Optimize your uptime and maintenance planning, and anticipate infrastructure issues before they occur with advanced analytics and performance benchmarking. Available in select countries.
Robust operation
No power derating in kW up to 40°C or 104°F.
Wide input voltage range
Designed for harsh electrical environments to save battery life.
Compatible with Galaxy Lithium-ion Battery Cabinets
Reduces system footprint and weight, cooling and maintenance requirements, and total cost of ownership; offers double the life of VRLA batteries; and improves backup storage predictability and manageability. Galaxy VS UPSs for external batteries are compatible with Galaxy Lithium-ion Battery Cabinets.
ECOnversion mode
Operating mode that ensures ultra high efficiency while charging the batteries, conditioning the load power factor and ensuring a Class 1 output voltage regulation.
High efficiency in double conversion mode
Consistently high power quality at high efficiency, even at low load levels. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Compact UPS
High-density technology and full front access make this UPS a footprint saver well suited for confined spaces.
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 60 kVA |
| Output power | 60000 W |
| Waveform | Sine |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 460 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (max) | 400 V |
| Output frequency | 50/60 Hz |
| Maximum current | 108 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Crest factor | 2.5:1 |
| ECO mode | Yes |
| Output voltage Total Harmonic Distortion (THD) | 1% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 68 dB |
| Power protection features | Overload, Short circuit |
| Audible alarm(s) | Yes |
| Management protocols | SNMP, Modbus TCP, Modbus RTU |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery voltage | 384 V |
| Design | |
| Form factor | Tower |
| Cooling type | Active |
| Built-in fan | Yes |
| Product colour | White |
| Control type | Touch |
| Display type | LCD |
| International Protection (IP) code | IP21 |
| Certification | EN/IEC 62040-1, EN/IEC 62040-2, FCC, IEC 60721-4-2, UL 1778 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -25 - 55 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 10 - 80% |
| Weight & dimensions | |
| Width | 520 mm |
| Depth | 847 mm |
| Height | 1485 mm |
| Weight | 250 kg |
| Package width | 640 mm |
| Package depth | 990 mm |
| Package height | 1680 mm |
| Package weight | 280 kg |
| Package type | Box |
| Packaging data | |
| Quick installation guide | Yes |
| Other features | |
| Bypass | Static |
| Warranty | |
| Base Warranty | Non Non |
