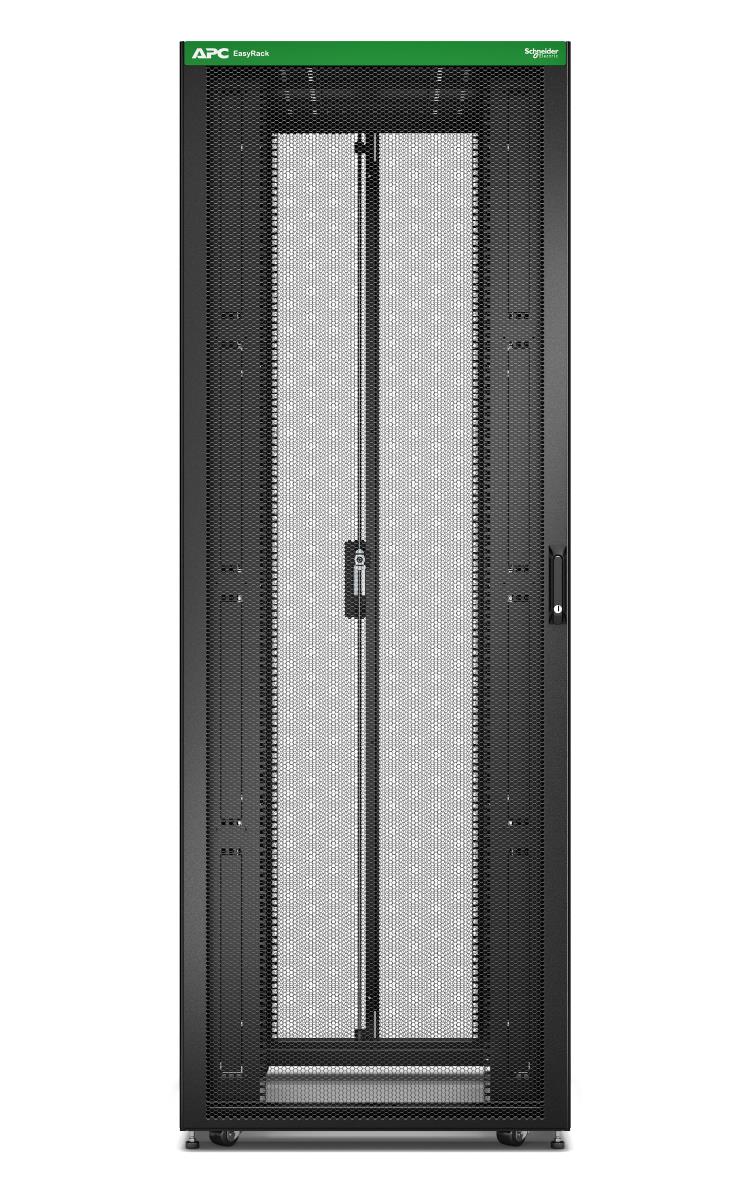

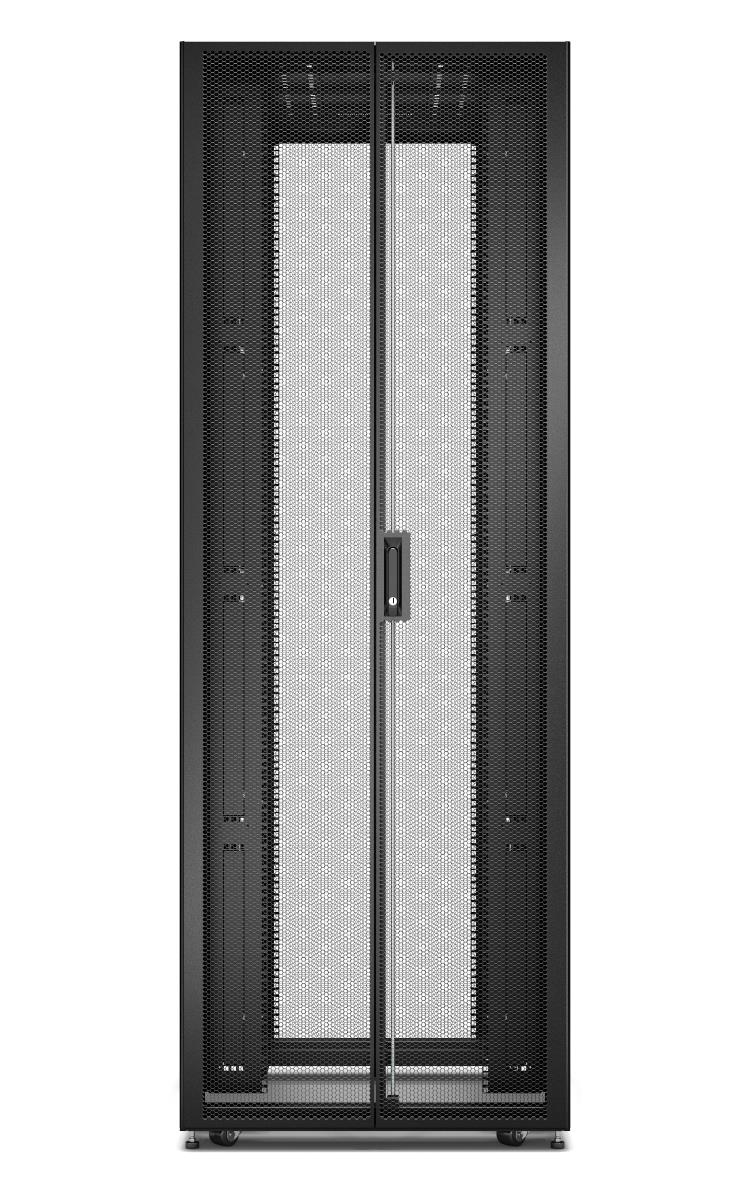

Easy Rack 800mm/48U/1000mm with Roof, Side Panel,Castors,Feet and 4 Brackets, No Bottom, Black
ITCurry #: 0280J694 | Article #: ER8802-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Easy Rack ER8802 is EIA-310 standard pre-assembled IT enclosure with essential features for fast and easy deployment in datacenter applications. ER8802 is wider for networking & featured with 48U height (6U extra), doors with 81% perforation for ample ventilation and load ratings static 1200kg & dynamic 600kg. This rack comes in 800mm width & 1000mm depth, with Roof, side panels, keys, levelling feet, casters, mounting hardware, PDU mounting brackets and without bottom. With UL 2146 certification, this enclosure features integrated electrical grounding, ensuring the roof, front and rear doors are grounded to the frame. This rack cabinet ships fully assembled for faster installation or choose to ship unassembled for storage or transit in tight spaces and prefer to assemble onsite. This Rack's depth allows front-to-back cabling while ensuring clearance for rack accessories and 48U height provides extra 6U space to maximize u-space per footprint. Easy Racks are easy to choose, install and accessorize with cooling, cable management & PDUs, including recently launched feature-rich, Easy Rack PDU series. Enclosures have been tested and approved to be combined with proper bolt down accessories to meet various seismic requirements. This is compatible with Schneider's EcoStruxure IT, allowing remote monitoring of on-premise and distributed IT infrastructure from anywhere, at any time, via any device.
| Features | |
| Rack capacity | 48U |
| Type | Freestanding rack |
| Maximum weight capacity | 1199.75 kg |
| Maximum weight capacity (rolling) | 599.65 kg |
| Product colour | Black |
| Side panels included | Yes |
| Castor wheels | Yes |
| Preassembled | Yes |
| Certification | EIA-310E, UL 2416, UL 60950-1 |
| Weight & dimensions | |
| Size (imperial) | 48.3 cm (19") |
| Width | 800 mm |
| Depth | 1000 mm |
| Height | 2258 mm |
| Weight | 140.4 kg |
| Mounting depth (min) | 24.2 cm |
| Mounting depth (max) | 83.8 cm |
| Packaging data | |
| Package width | 1050 mm |
| Package depth | 850 mm |
| Package height | 2390 mm |
| Package weight | 149 kg |
| Logistics data | |
| Harmonized System (HS) code | 85381000 |
| Warranty | |
| Base Warranty | Non Non |
