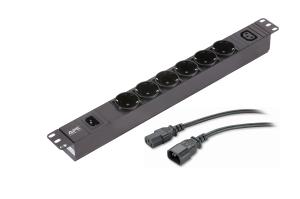

Easy PDU, Basic, 1U, 16A, 230V, (8)C13
ITCurry #: 0280J177 | Article #: EPDU1016B-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Easy Basic PDU provide reliable rack power distribution units (PDU) that offer more than a power strip for server rack and network rack solutions.
Agility
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Cost Savings
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
| Design | |
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Housing material | Aluminium |
| Product colour | Black |
| On/off switch | No |
| Ports & interfaces | |
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler |
| Features | |
| Daisy chain | No |
| Cable length | 2.5 m |
| Certification | CE, TUV |
| Power | |
| Nominal input voltage | 200/208/230 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Nominal output voltage | 208/230 V |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum power | 3680 W |
| Weight & dimensions | |
| Width | 482 mm |
| Depth | 44 mm |
| Height | 44 mm |
| Weight | 580 g |
| Packaging data | |
| Package weight | 1.18 kg |
| Package width | 560 mm |
| Package depth | 80 mm |
| Package height | 150 mm |
| Packaging content | |
| Manual | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 øC |
| Storage temperature (T-T) | -25 - 65 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Warranty | |
| Base Warranty | Non Non |
