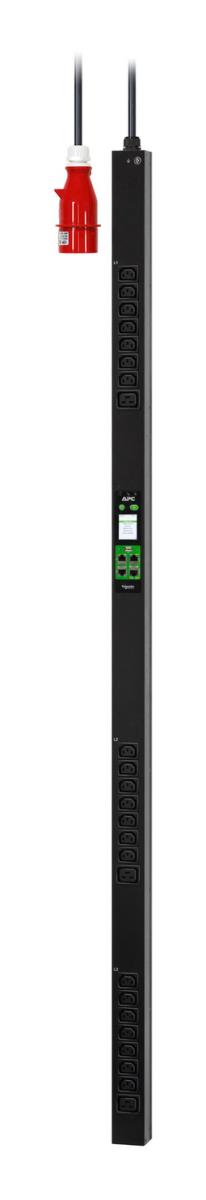

Easy Metered Rack PDU, Zero U, 11 kW, 230V, 21 C13 and 3 C19 outlets, IEC309
ITCurry #: 0280L923 | Article #: EPDU2216M-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Schneider Easy Metered Rack PDU EPDU2216M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU2216M has IEC 309 16A 3P+N+E type inlet, Twenty one IEC C13 and three IEC C19 type outlet sockets. This is vertical rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. The green packaging includes installation guide, user manual toolless mounting kit and vertical mounting brackets for quick and easy mounting in the enclosure. This can operate from -5° to +50°C temperation range and comes with 1 year of standard warranty. Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
| Design | |
| PDU types | Metered |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 21 AC outlet(s) |
| Power plug | C13 coupler |
| AC outlet types | C13 coupler, C19 coupler |
| Power | |
| Nominal input voltage | 400 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 16 A |
| Nominal output voltage | 230 V |
| Output voltage | 230 V |
| Load capacity | 11040 VA |
| Number of phases | 3 |
| Certificates | |
| Compliance certificates | CE, UKCA |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 øC |
| Storage temperature (T-T) | -25 - 65 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width | 56 mm |
| Depth | 56 mm |
| Height | 1650 mm |
| Weight | 3.3 kg |
| Packaging data | |
| Package weight | 4.5 kg |
| Package width | 170 mm |
| Package depth | 1810 mm |
| Package height | 1260 mm |
| Warranty | |
| Base Warranty | Non Non |
