Back-UPS 1400VA 230V AVR Schuko Sockets
ITCurry #: 0280F013 | Article #: BX1400U-GR
slide 2 of 5
Related products
slide 7 to 11 of 14
Product Information
USB connection
Use your PC to access additional power protection and management features for your UPS via a USB Port.
Telephone dataline surge protection
Provides protection of connected equipment from power surges traveling on telephone lines.
Automatic Voltage Regulation (AVR)
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
| Warranty | |
| Base Warranty | Non Non |
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 1.4 kVA |
| Output power | 700 W |
| Waveform | Sine |
| Input operation voltage (min) | 150 V |
| Input operation voltage (max) | 280 V |
| Input frequency | 50/60 Hz |
| Output frequency regulation | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Maximum current | 6 A |
| Surge energy rating | 273 J |
| Hold time (min) | 8 ms |
| Hold time (max) | 10 ms |
| Efficiency | 97.4% |
| Noise level | 45 dB |
| Surge protection | Yes |
| Surge protection features | Fax, Modem |
| Audible alarm(s) | Yes |
| Audible alarm modes | Low battery alarm, Overload alarm |
| Auto-restart | Yes |
| Ports & interfaces | |

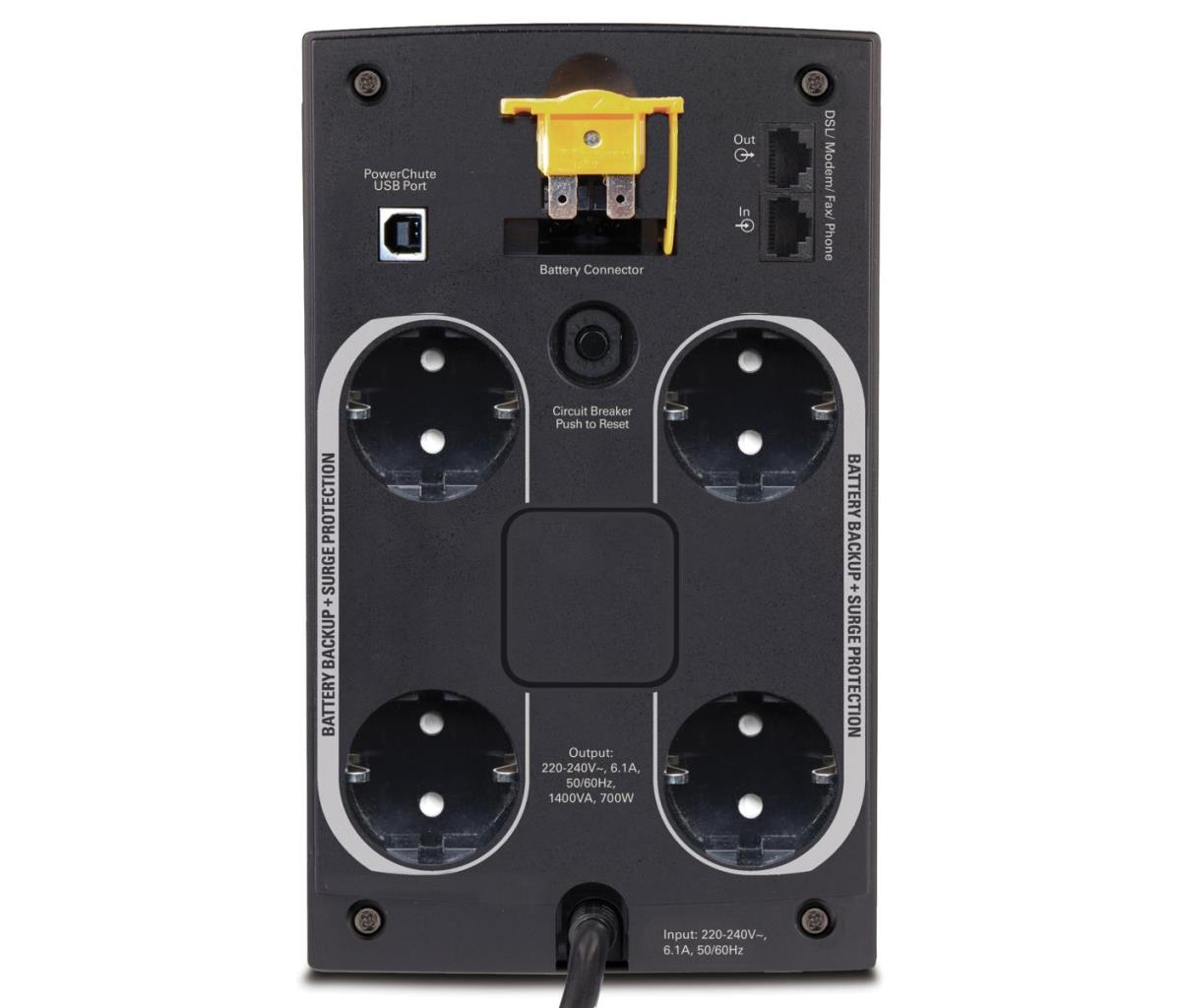

| AC outlet types | Type F |
| Number of type F outputs | 4 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 7.2 Ah |
| Battery capacity | 165 VAh |
| Battery voltage | 12 V |
| Number of batteries supported | 2 |

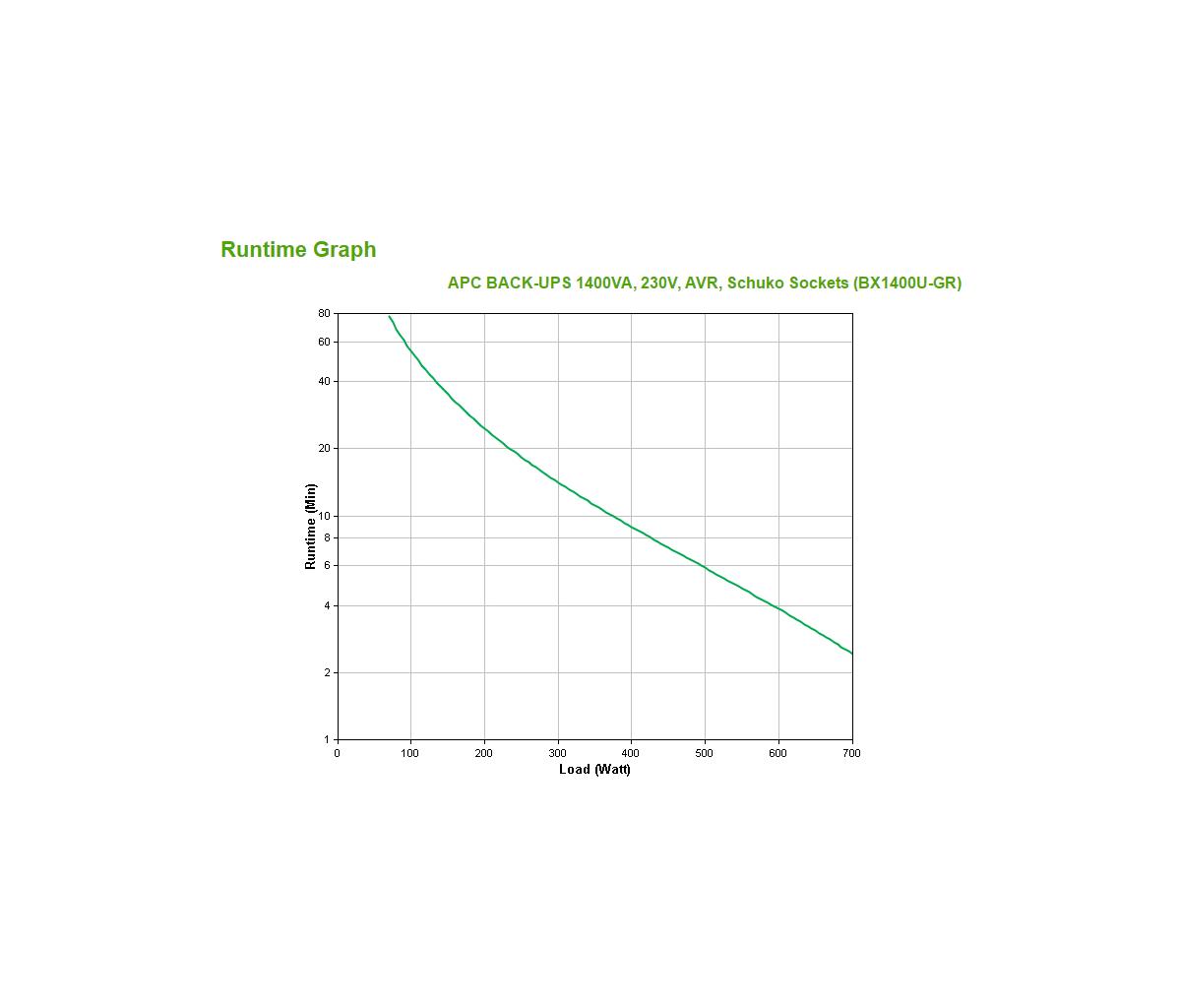

| Typical backup time at full load | 2.4 min |
| Typical backup time at half load | 11.2 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 8 h |
| Automatic battery test | Yes |
| Design | |
| Form factor | Tower |
| Cable length | 1.22 m |
| Product colour | Black |
| Display type | LED |
| LED indicators | Yes |
| Certification | CE, REACH |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -15 - 40 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 9000 m |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 130 mm |
| Depth | 336 mm |
| Height | 215 mm |
| Weight | 12 kg |
| Package width | 245 mm |
| Package depth | 440 mm |
| Package height | 295 mm |
| Package weight | 12.9 kg |
| Packaging data | |
| Manual | Yes |
| Bundled software | PowerChute Personal Edition |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Type of input protection required | 3-pole circuit breaker |
| Filtering | Yes |
