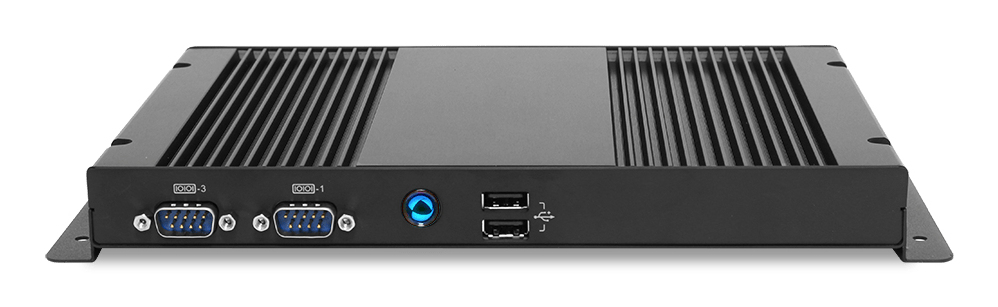

Digital Engine Dex5750
ITCurry #: 91512989 | Article #: 91.DEP00.E5E0-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The first AOPEN Intel-based system capable of supporting hardware accelerated AV1 8K playback. As if that wasn’t enough, the DEX5750 has a 12 ~ 24V DC for automotive use and a legacy RS232/422/485 COM Port selectable by BIOS, making the system very suitable for automation purposes.
8K HDR content playback
This digital signage media player is capable of driving 8K content. With a resolution that goes up to 7680 x 4320 pixels, your content is displayed clearly.
Intel® Core™ platform
This Digital Engine is based on the Intel® Core™ platform. More specifically, on the 11th generation. These computing devices are available in i3 and i5, and therefore in different SKU’s.
Small form factor
This form factor ensures easy integration into kiosks or behind screens. The AOPEN small form factor is a standard that is used for Digital Engine (DE) models. The size of our Digital Engine series is set to a maximum of 240 x 25 x 158 mm. Do the math and you will see that a Digital Engine is an investment that will last, even after replacing the item in a kiosk or mount that already exists.
Fanless design without venting holes
This Digital Engine is passively cooled. The cooling ribs on its exterior make sure the device won’t overheat. This means the device doesn’t have moving parts which enhance its reliability. Furthermore, the device is quiet and dustproof.
| Features | |
| Product colour | Black |
| Display | |
| Built-in display | No |
| Processor | |
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor model | i5-1145G7 |
| Processor frequency | 1.1 MHz |
| Processor boost frequency | 4.4 GHz |
| Processor cores | 4 |
| Storage | |
| Built-in storage media | Yes |
| Storage media type | SSD |
| Total storage capacity | 128 GB |
| Storage drive interface | M.2 |
| Card reader integrated | No |
| Memory | |
| Internal memory | 8 MB |
| Internal memory type | DDR4 |
| Video | |
| HD type | 8K Ultra HD |
| Maximum video resolution | 7680 x 4320 pixels |
| High Dynamic Range (HDR) supported | Yes |
| Audio | |
| Audio chip | Realtek ALC897 |
| Ports & interfaces | |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Audio (L/R) out | 1 |
| Microphone in | Yes |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Software | |
| Operating system installed | No |
| Weight & dimensions | |
| Width | 240 mm |
| Depth | 158 mm |
| Height | 25 mm |
| Weight | 1.87 kg |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 45 øC |
| Storage temperature (T-T) | -30 - 60 øC |
| Operating relative humidity (H-H) | 0 - 90% |
| Warranty | |
| Base Warranty | Non Non |
