Dental Monitor - Dr-24g - 24in - 1080x1024 (sxga) - White
ITCurry #: 92942545 | Article #: DR-24G-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
DR-24G

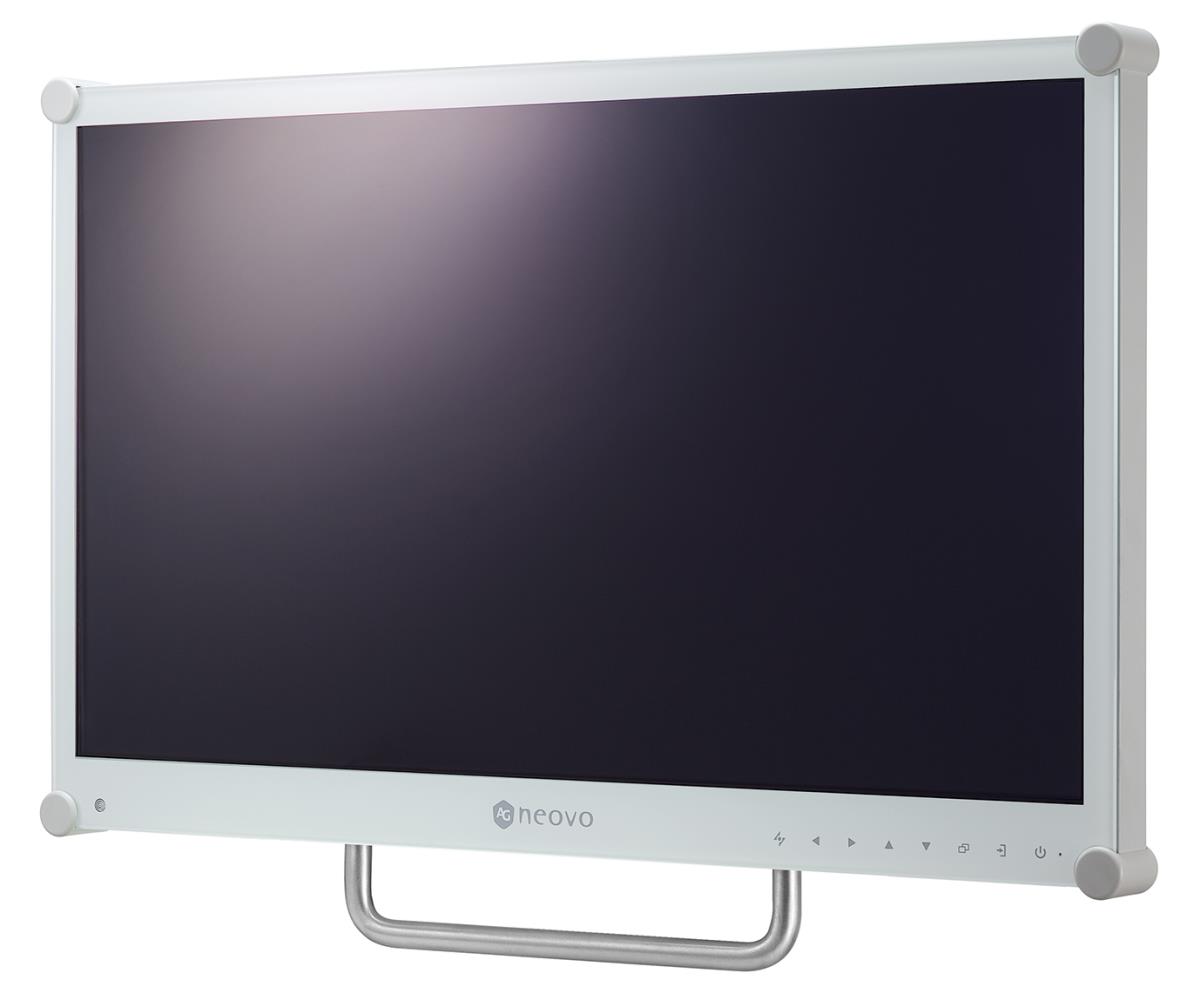

The AG Neovo DR-24G is a 24-inch dental monitor that features a quick switch to X-ray illuminator mode for dental X-ray film viewing without using another X-ray view box. With advanced gamma correction, black-level alignment adjustability, and high contrast ratio, the dentists can verify the patient’s condition of teeth, jaw placement, and facial bone before dental treatment. The NeoV™ Optical Hard Glass Screen and white metal casing design meet an array of medical level cleaning requirements, allowing dental professionals to clean and sanitise the monitors.
EASY CLEAN AND ROBUST PROTECTION
The special design of NeoV™ Optical Hard Glass and white metal casing prevent dust and waterproof for easy clean and robust protection.
QUICK SWITCH TO X-RAY VIEWING MODE
The DR-24G 24-inch dental monitor integrates hotkey operation to switch X-ray viewing mode without using another X-ray view box.
DC 24V MEDICAL-GRADE POWER ADAPTER FOR A LONGER DISTANCE CONNECTION
Designed with DC 24V power supply, it is ideal for long-distance (up to 5 meters) cable management between dental equipment and displays. The medical power supply with IEC / EN60601-1 certified ensures safety, performance, and reliable operation in any professional medical environment.
PIP/PBP SUPPORT
PiP/PbP functions enable viewing and comparing two images simultaneously from different sources and enhance work efficiency for multitasking.
GREAT MOBILITY
This 24-inch dental monitor meets VESA 75mm/100mm wall mount standard and optional handle for flexible installation and operation on the dental chair.
| Display | |
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Panel type | VA |
| Backlight type | LED |
| Touchscreen | No |
| Display brightness (typical) | 250 cd/mý |
| Response time | 5 ms |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Aspect ratio | 16:9 |
| Contrast ratio (dynamic) | 20000000:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.274 x 0.274 mm |
| Digital horizontal frequency | 24 - 83 kHz |
| Digital vertical frequency | 50 - 75 Hz |
| Display diagonal (metric) | 60 cm |
| Haze rate | 40% |
| Surface hardness | 3H |
| Colour gamut standard | NTSC |
| NTSC coverage (typical) | 72% |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Flicker-free technology | Yes |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Design | |
| Market positioning | Medical |
| Product colour | White |
| Housing material | Metal |
| Front bezel colour | White |
| Glass thickness | 3 mm |
| Ports & interfaces | |
| Built-in USB hub | No |
| USB Type-A downstream ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Micro HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
| PC Audio in | Yes |
| DC-in jack | Yes |
| Composite video in | 2 |
| Composite video out | 2 |
| S-Video inputs quantity | 1 |
| RS-232 ports | 1 |
| Audio RCA outputs | 1 |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | No |
| Picture-in-Picture | Yes |
| X-ray film viewing mode | Yes |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 18 kWh |
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Input current | 2.71 A |
| AC adapter output voltage | 24 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width (without stand) | 562.4 mm |
| Depth (without stand) | 56.2 mm |
| Height (without stand) | 352.6 mm |
| Weight (without stand) | 7.4 kg |
| Packaging data | |
| Package width | 672 mm |
| Package depth | 249 mm |
| Package height | 517 mm |
| Package weight | 10.6 kg |
| Package type | Box |
| Warranty card | Yes |
| Packaging content | |
| Cables included | AC, Audio (3.5mm), VGA |
| Power adapter included | Yes |
| Quick start guide | Yes |
| Power cable length | 5 m |
| Sustainability | |
| Sustainability compliance | Yes |
| Other features | |
| Protection features | Dust resistant, Waterproof |
| Display surface reflectivity (typical) | 1% |
| Picture-by-Picture (PbP) | Yes |
| Light sensor | Yes |
| Glass screen | NeoV Optical |
| Transmission rate | > 97% |
| Compliance certificates | CE, Low Voltage Directive (LVD), REACH, RoHS, WEEE |
| Warranty | |
| Base Warranty | Non Non |
