USB-C 3.2 Gen2 (AOC) Connection Cable 10m
ITCurry #: T4056351 | Article #: AK4310-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

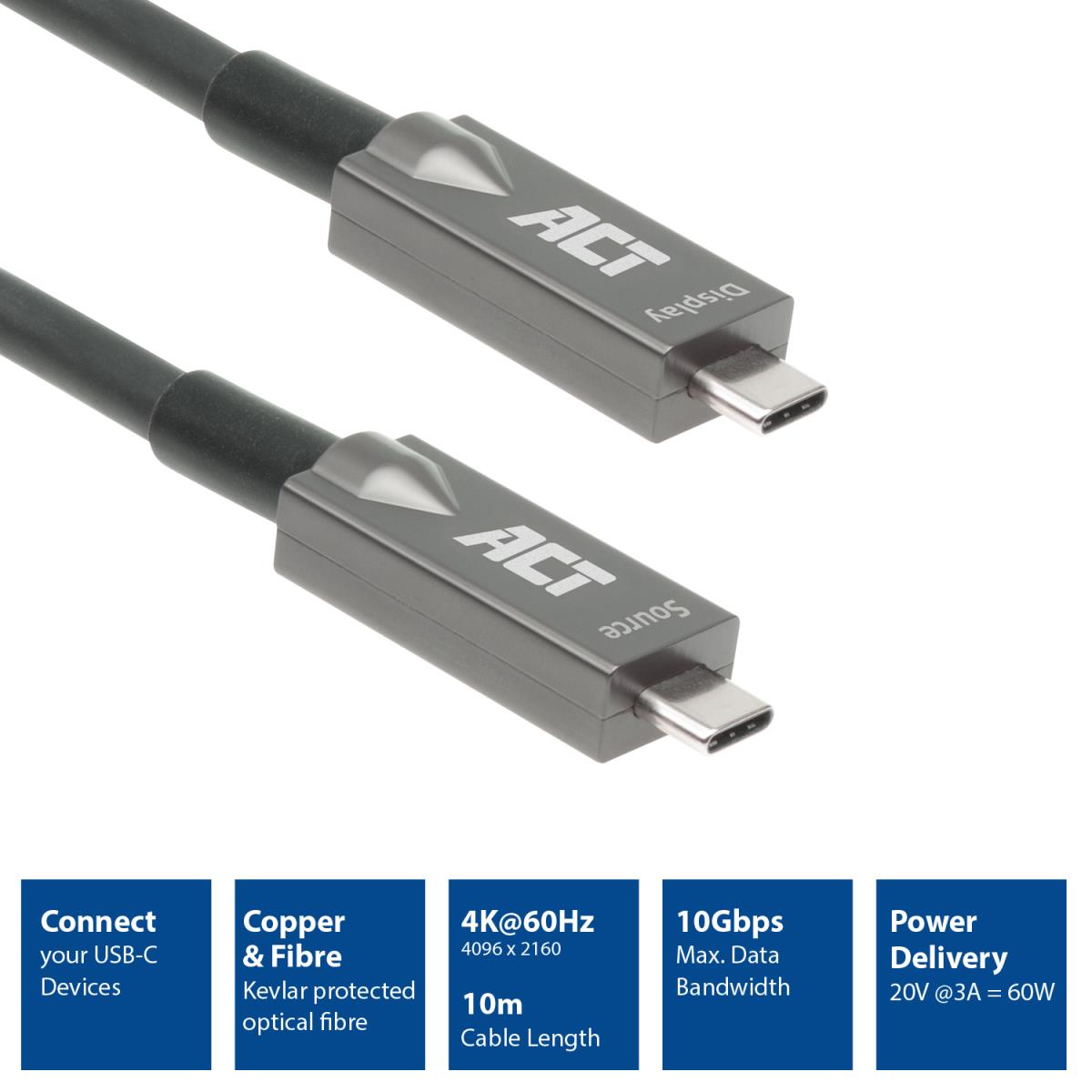

The ACT USB-C Active Optical Cable (AOC) is made of fiber and copper and is the perfect solution for connecting USB-C devices over long distances up to 10 meters without data/video/power loss. Supports data/video transfer up to 10Gbps, a max. video resolution of 4K @ 60Hz and 60W Power Delivery. The cable has a Kevlar protected fiber and is suitable for sensitive applications due to low RFI/EMI. Ideal for use in meeting rooms, classrooms and hospitals.
AOC: copper and fiber for longer distances

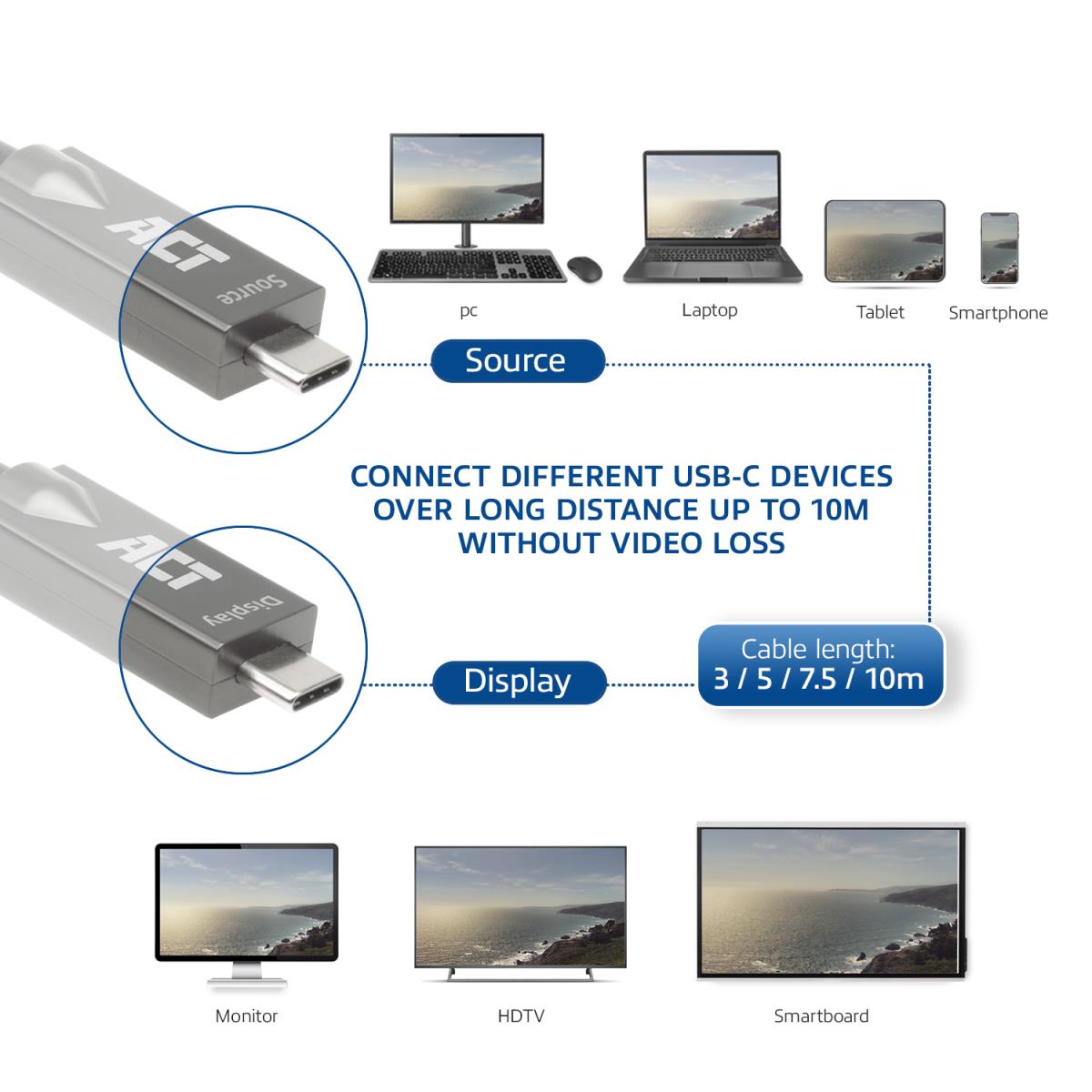

Active Optical Cables (AOC) are made of copper and fiber for connecting USB-C devices over long distances without data/video/power loss. The maximum length of the cable is 10 meters.
Lossless data, video and power up to 10 meters

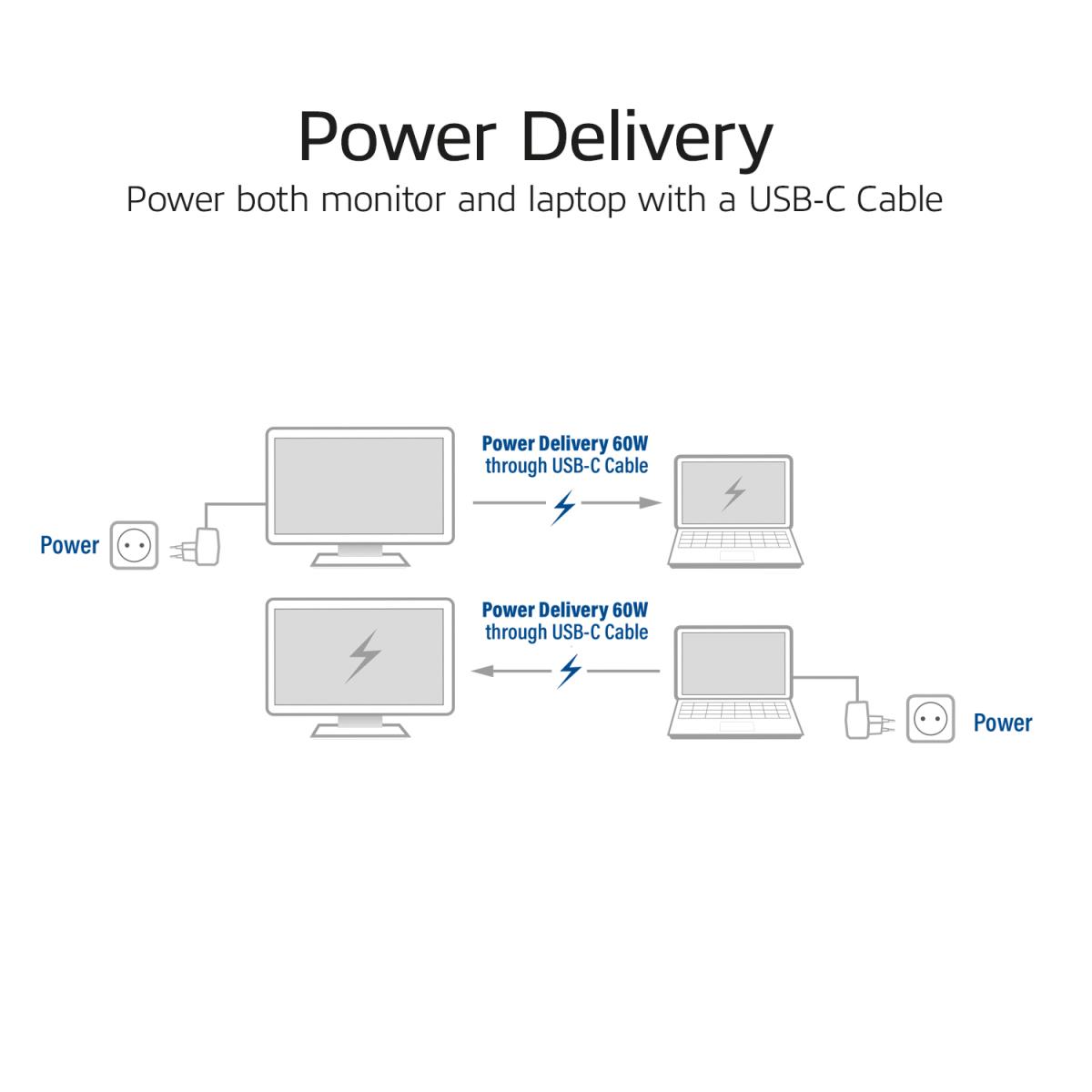

Data, video and power in one cable. Standard USB-C cables have a maximum length of 2 meters. With AOC the maximum length is 10 meters without loss of data/video/power. The ACT USB-C Active Optical Cables support USB 3.2 Gen2 for data/video transfer up to 10Gbps. The AOC USB-C cable supports Display Alternate Mode up to 4K @ 60Hz. Additionally, the cables can handle 60W Power Delivery.
Highly resistant to EMI/RFI and thus suitable for sensitive applications
The ACT Active Optical cables are suitable for connecting sensitive applications due to the low EMI (Electromagnetic Interference) / RFI (Radio Frequency Interference).
The highly sensitive equipment in hospitals requires cables without having the risk of electromagnetic or radio frequency interferences.
Application in meeting rooms and classrooms
USB-C Active Optical cables are ideal for use in various professional settings. Meeting rooms are often equipped with screens and conference cameras. Lossless data, video and power is needed at the same time.
Additional features
The USB 3.2 Gen2 AOC is backwards compatible with USB 3.1, USB 3.0, USB 2.0 and USB 1.1.
| Features | |
| USB version | USB 3.2 Gen 2 (3.1 Gen 2) |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 24/28 |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Hybrid Fiber-Copper |
| Connector shielding | Yes |
| Maximum data transfer rate | 10 Gbit/s |
| Product colour | Black, Grey |
| Cable type | Round cable |
| USB Power Delivery up to | 60 W |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Power | |
| Input voltage | 20 V |
| Input current (max) | 3 A |
| Output current (max) | 3 A |
| Weight & dimensions | |
| Cable length | 10 m |
| Cable diameter | 6.5 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
