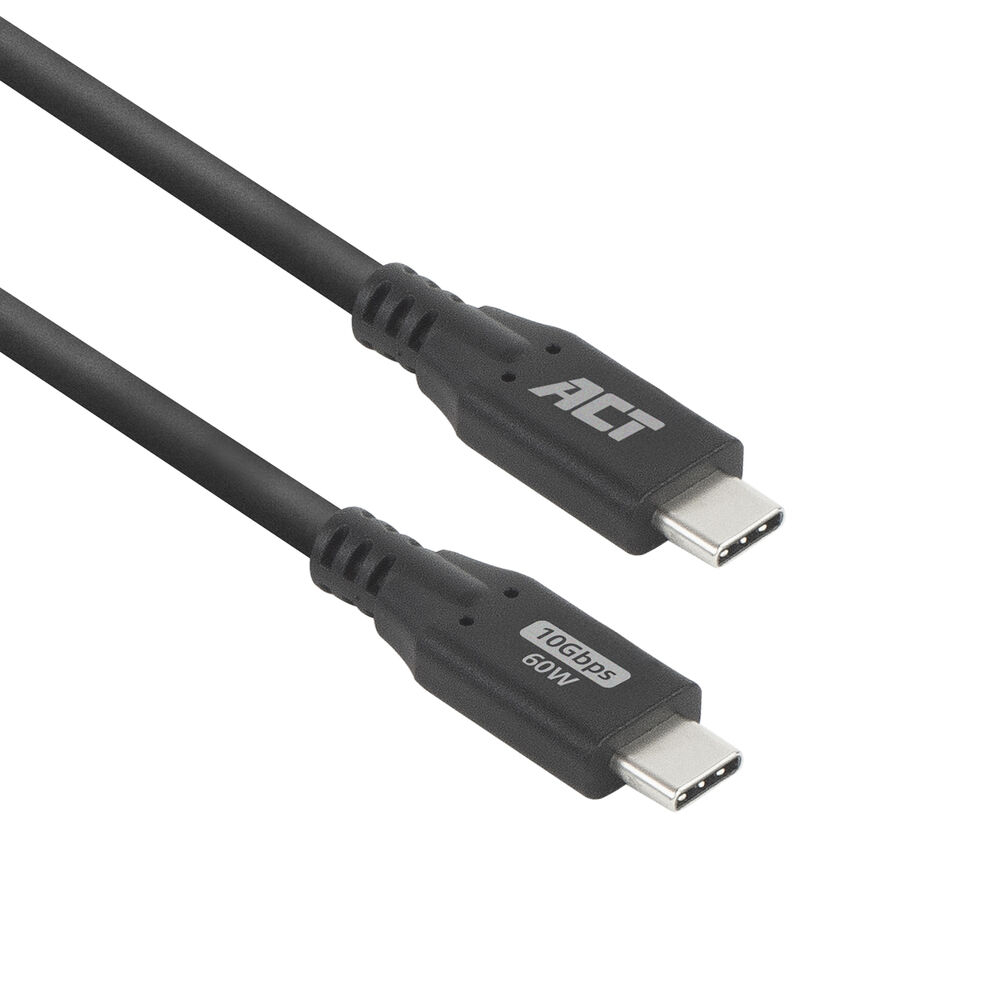

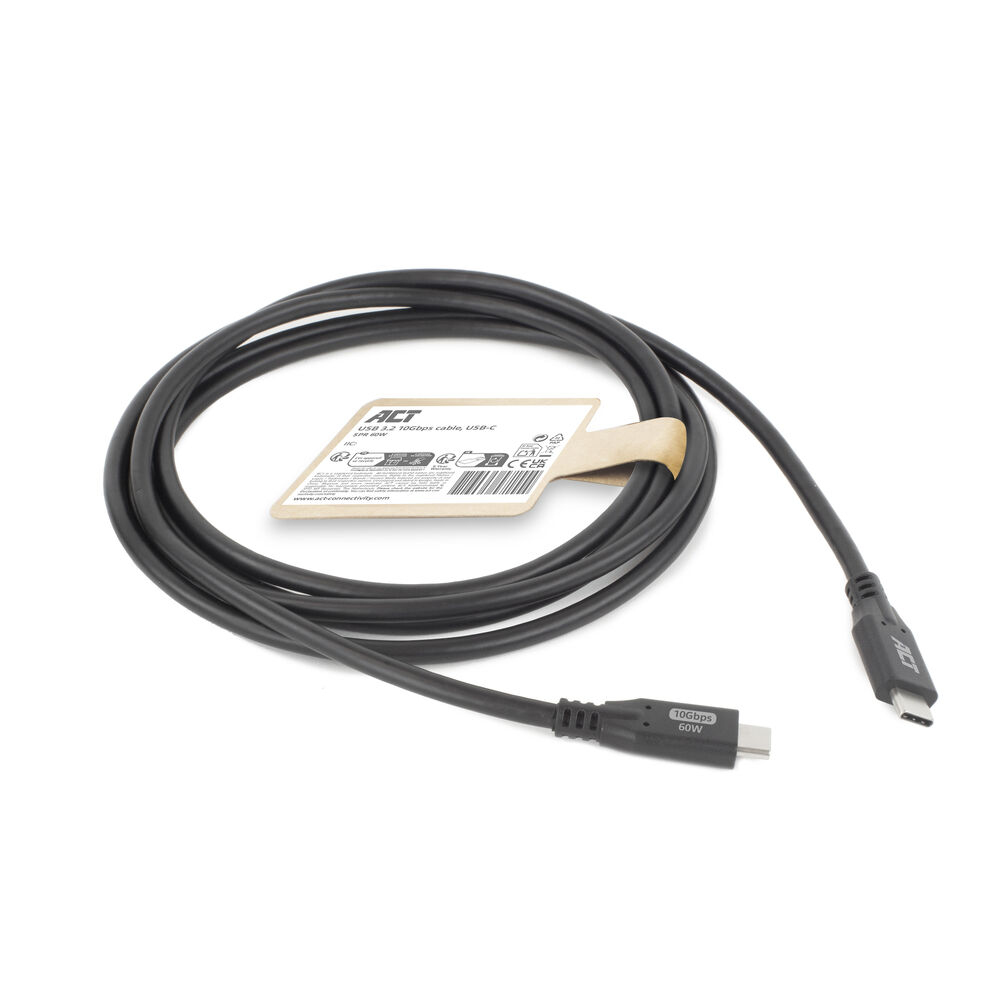

USB-C 3.0 10Gbps 60W Cable - M/M - 50cm
ITCurry #: T4057238 | Article #: AC7440
Related products
Product Information

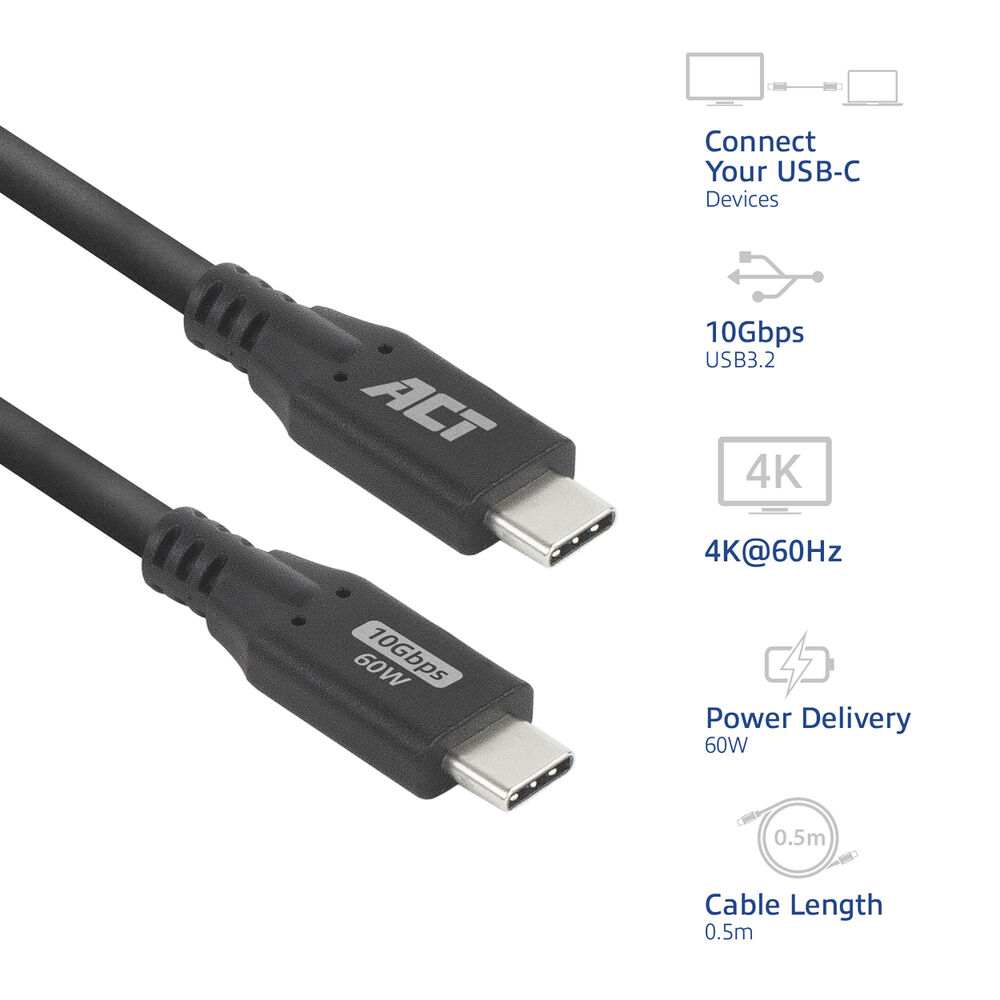

Connect your USB-C devices with the AC7440 USB 3.2 10Gbps USB-C cable. The cable can reach a maximum data transfer speed up to 10Gbps and can handle 60W power. The AC7440 supports DisplayPort Alternate Mode 1.4 with a maximum resolution up to 4K@60Hz and is backwards compatible with USB 3.1 and USB 2.0.
Data, power and video via one USB-C cable
The AC7440 can handle data, power and video, and includes the USB 3.2 technology. The cable supports a maximum data transfer speed up to 10Gbps.
Power Delivery: Standard Power Range 60W
The AC7440 supports the SPR (Standard Power Range) and can deliver 60W.
DisplayPort Alternate Mode protocol
The USB-C cable supports the DisplayPort Alternate Mode 1.4 (DP Alt Mode) protocol to distribute video over USB-C. The AC7440 supports a maximum resolution of 4K@60Hz.
| Features | |
| USB version | USB 3.2 Gen 2 (3.1 Gen 2) |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Copper |
| Maximum data transfer rate | 10 Gbit/s |
| Product colour | Black |
| Cable type | Round cable |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 60 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| DisplayPort version | 1.4 |
| Maximum resolution | 4096 x 2160 pixels |
| Power | |
| Output voltage | 5 - 20 V |
| Output current (max) | 3 A |
| Weight & dimensions | |
| Cable length | 0.5 m |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
