Slimline Patch Cable - CAT6 - U/UTP - 15cm - Black
ITCurry #: T4056729 | Article #: DC9930
Related products
Product Information
CAT6 U/UTP slimline datacenter ethernet cables are smaller in diameter (3.8mm vs 5.9mm) than regular CAT 6 patch cords. The bending radius is lower in comparison with regular patchcords. All this results in a better airflow in the server rack/network cabinet.
Although ISO/IEC and the TIA standards describe the use of patch cords between 22 and 26 AWG, it is possible to use 28 AWG patch cables. This results in a higher attenuation, particularly at higher frequencies.
ACT advises a maximum bundle size of 24 cables in PoE applications. In this case the temperature of the cables, that are delivering PoE deployments, will not increase. The standard, ANSI TSB-184-A, limits the maximum temperature increasement, to less than 15 degrees Celsius above the ambient temperature, for the center cable in a bundle.
| Warranty | |
| Base Warranty | Non Non |
| Features | |
| Product colour | Black |
| Cable length | 0.15 m |
| Cable standard | Cat6 |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |

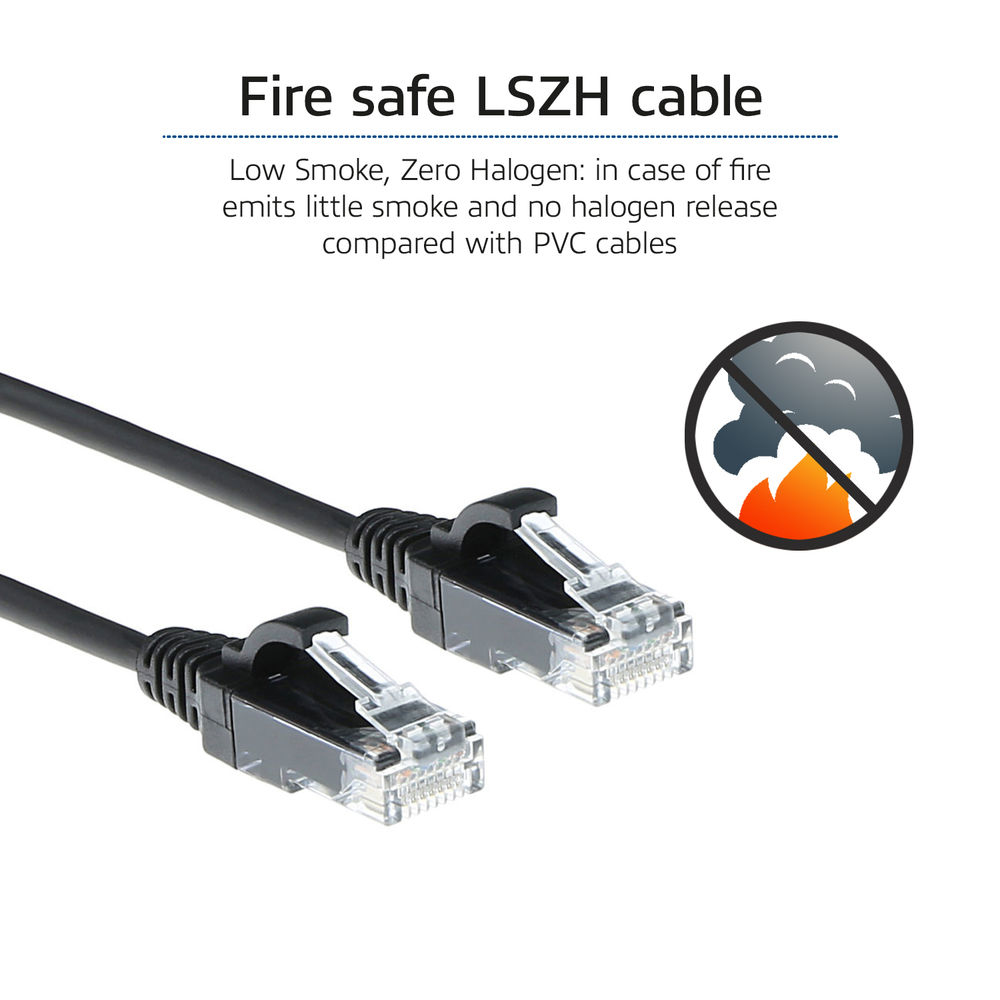

| Jacket material | Low smoke zero halogen (LSZH) |
| Cable shape | Round |
| Conductor material | Copper |
| AWG wire size | 28 |
| Frequency | 250 MHz |
| Bend radius (min) | 1.5 cm |
| Weight & dimensions | |
| Outer diameter | 3.8 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Sustainability compliance | Yes |
| Warranty period | 5 year(s) |
| Compliance certificates | CE, RoHS |
