Gigabit Ethernet Media Converter
ITCurry #: T4057199 | Article #: AC4451
slide 2 of 7
Price:
18.64
Ex VAT
Shipping:
FREE Shipping on orders over 100€ Ex VAT.
Out of Stock. Contact Us!
Related products
slide 7 to 11 of 14
Product Information

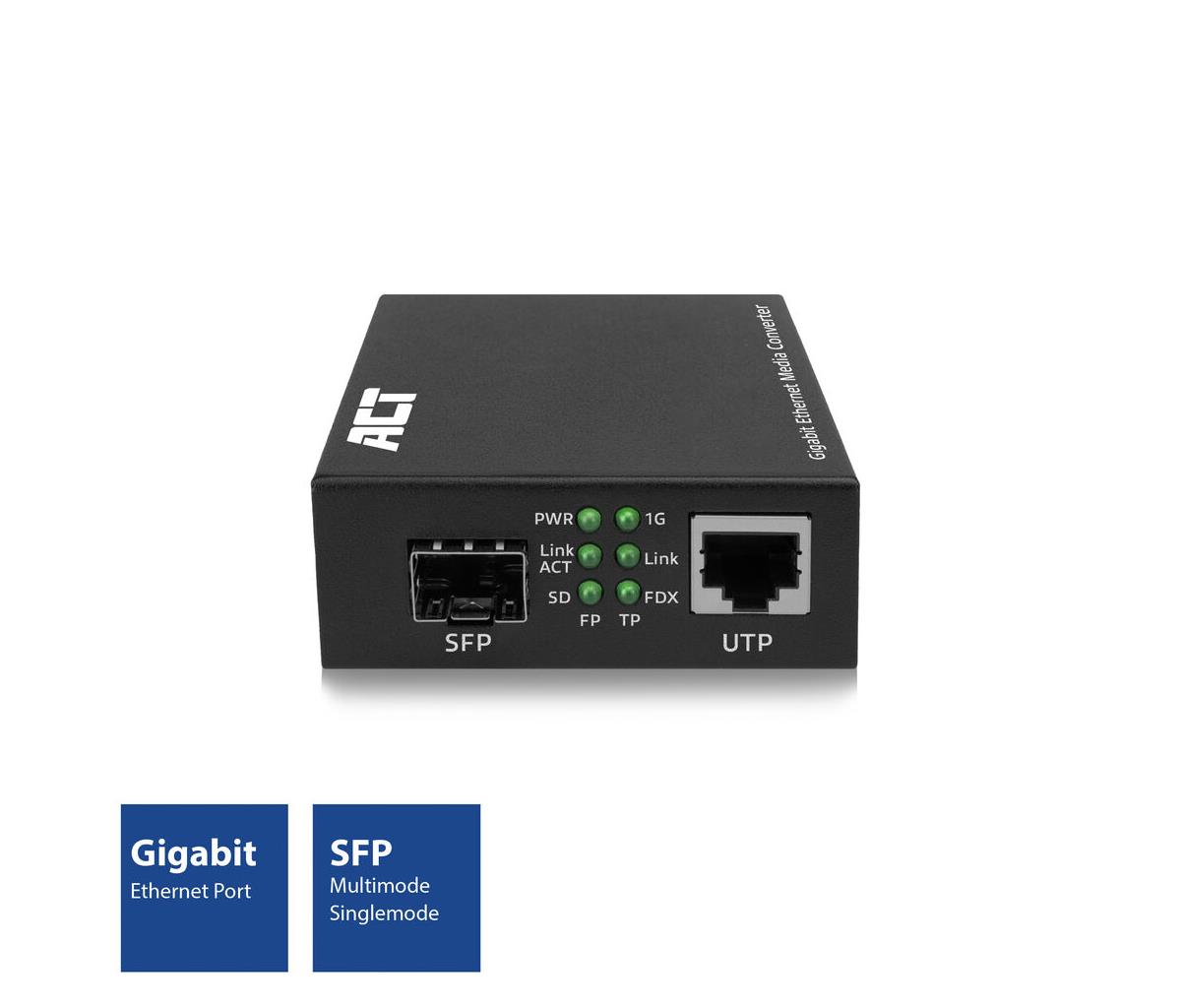

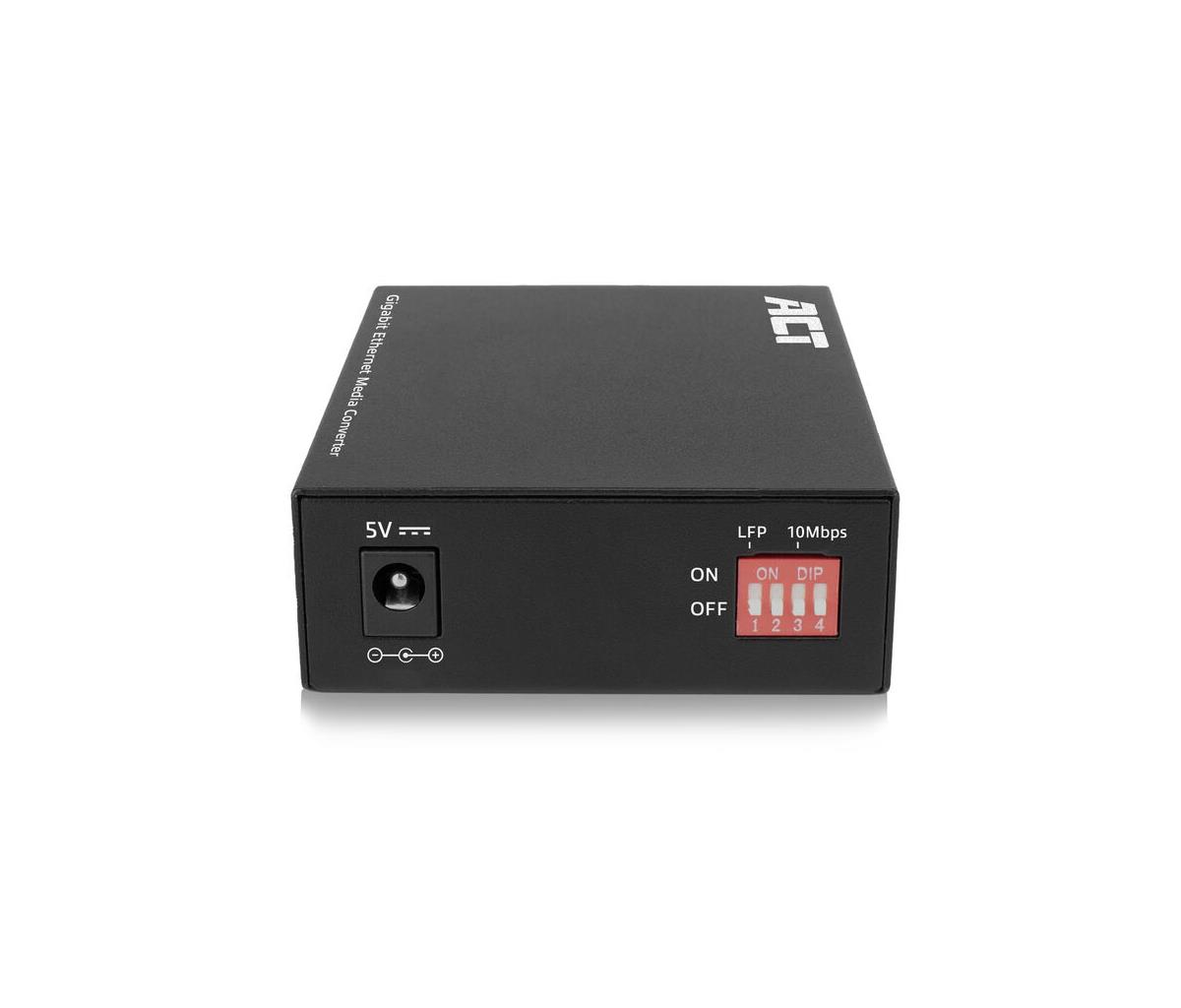

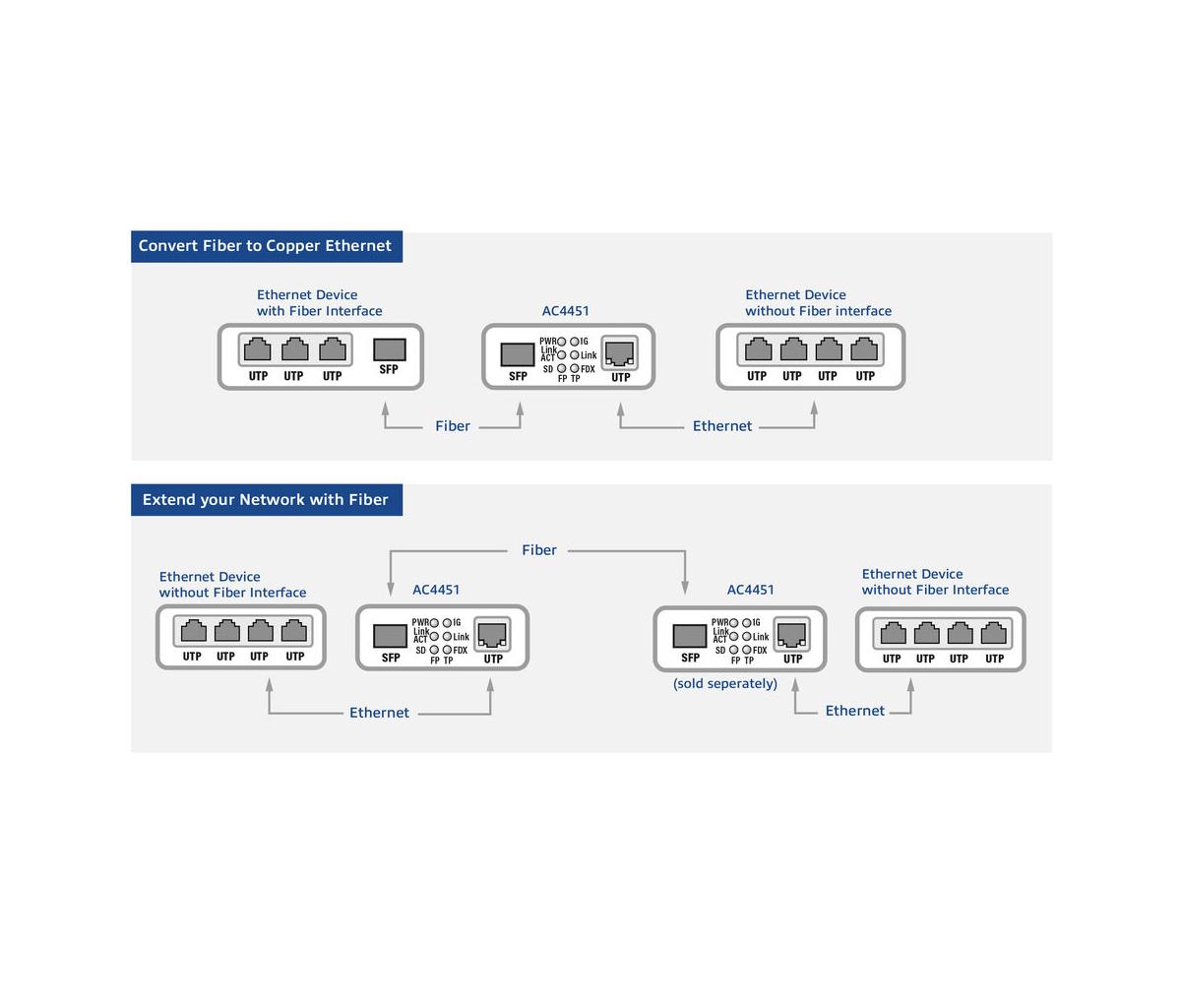

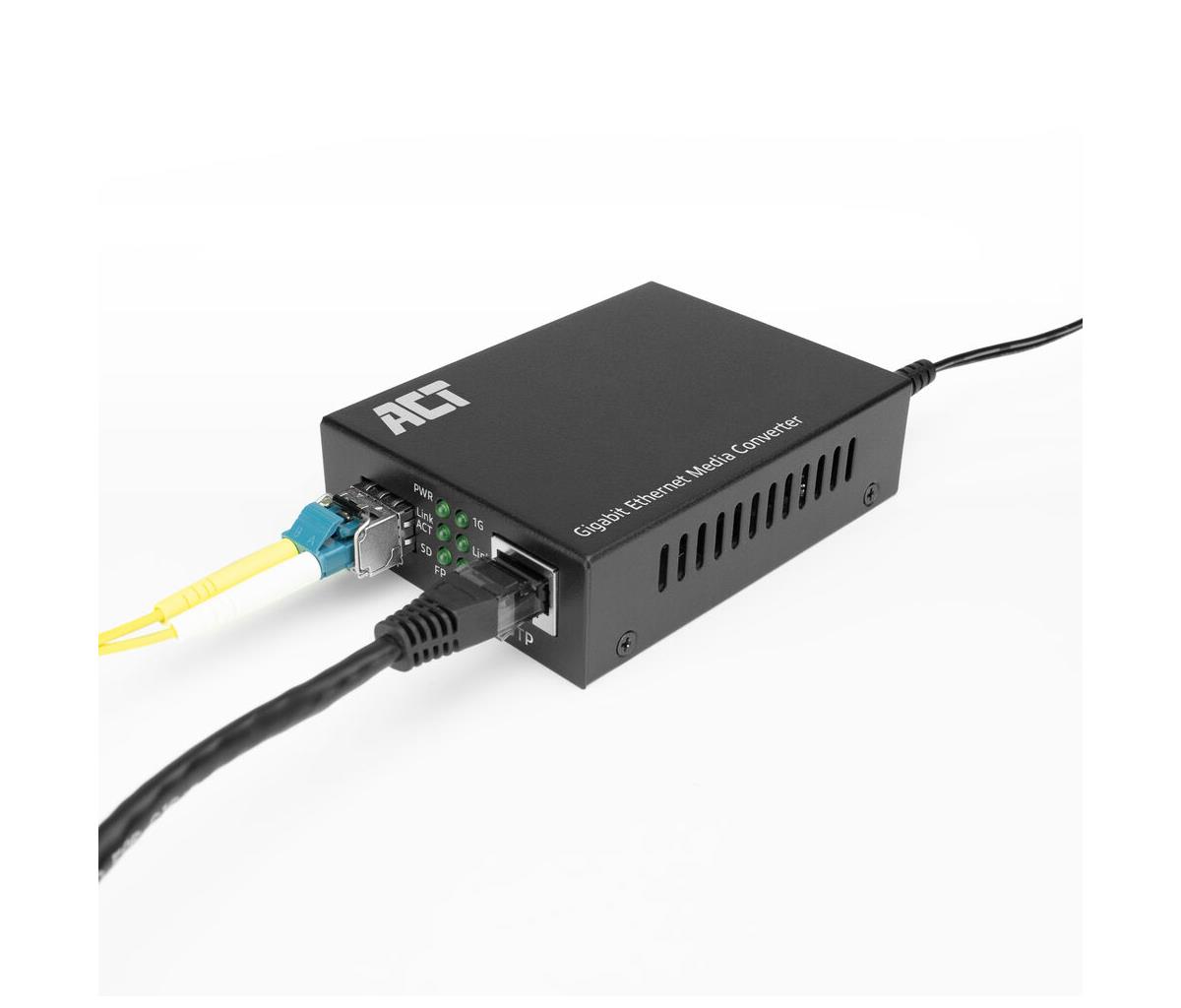

The AC4451 Gigabit Ethernet Media Converter provides a flexible high-performance solution for a fast and easy transition from Gigabit Ethernet over fiber to Gigabit Ethernet over copper (RJ45) and vice versa. The unmanaged media converter has an open SFP slot for accommodating one singlemode or multimode uncoded SFP transceiver. Additionally, the Ethernet media converter features Link Fault Passthrough (LFP) for detecting link failures. Different work modes can be set by the on-board dip switches.
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 10Base-T, 100BASE-FX, 1000Base-LX, 1000Base-SX, 1000Base-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto-negotiation | Yes |
| Link Fault Pass-through (LFP) | Yes |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | SFP |
| DC-in jack | Yes |
| Performance | |
| Fiber mode structure | Multi-mode, Single-mode |
| Design | |
| Internal | No |
| LED indicators | Activity, FDX, Link, Power, Speed |
| Product colour | Black |
| Housing material | Metal |
| Power | |
| Output voltage | 5 V |
| Output current | 1 A |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 97 mm |
| Height | 26 mm |
| Weight | 171 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 øC |
| Storage temperature (T-T) | -20 - 70 øC |
| Packaging data | |
| Package type | Box |
| Packaging content | |

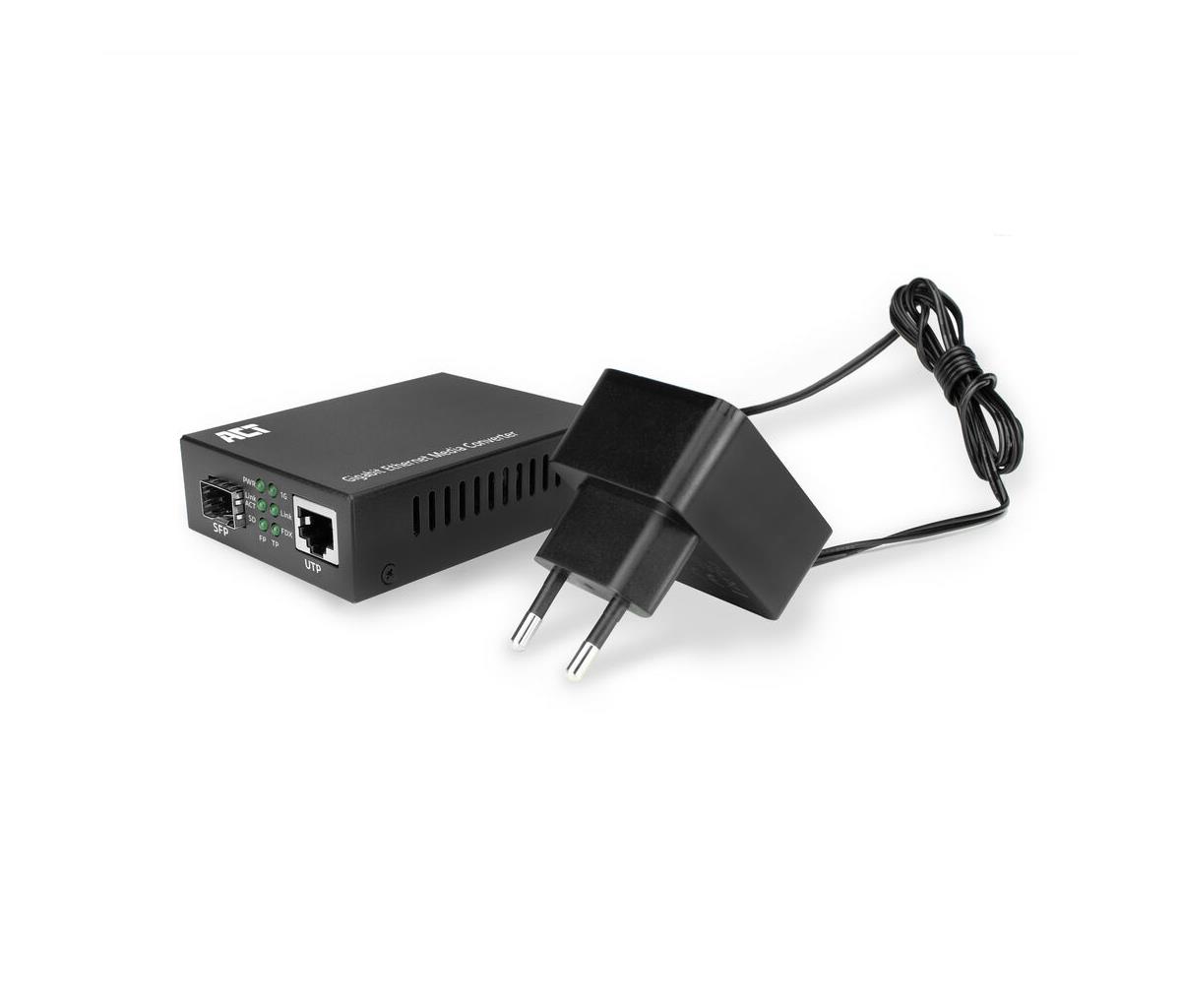

| AC adapter included | Yes |
| Warranty | |
| Base Warranty | Non Non |
