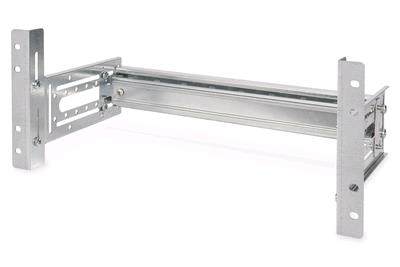

DIN rail holder, 4U, 178x483x223 mm, galvanized incl. din rail, variable depth and height
ITCurry #: M9237791 | Article #: DN-19-DIN-4U-
EcranMémoirePoidsProcesseurDisque durSSDEcranRésolutionConnectivitéMémoireBoitierOSEcranTypeVitesse NoirVitesse CouleursModèleVitesseFacteur de formeInterne / ExterneNombre de portsUplink / MédiasMontage
- Voir tout
Bundles
Produits Similaires
Informations sur le produit
- For quick, screwless mounting of 35 mm, top-hat DIN rail devices
- Incl. built-in DIN rails according to DIN EN 60715 (HxW= 35x390 mm), depth-adjustable
- Rear with height-adjustable C-rail for cable retention
The 482.6 mm (19") rack-mount DIN rail panel (35 mm, top hat) accommodates DIN rail devices on a built-in DIN rail with a width of 390 mm. It is depth-adjustable and can also be rotated 90° upwards or downwards for horizontal device mounting if required. The rear has a height-adjustable C-rail with special attachment points for Velcro tape or cable ties, for example, for optimum cable routing. The entire support is height-adjustable for individual space requirements (the 4U mounting brackets are permanently installed in the enclosure).
