Gaming Monitor Arm 24-57in - Gas Spring - Topfix - 180ø-stop
ITCurry #: M3333101 | Article #: DS70-256BL1-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

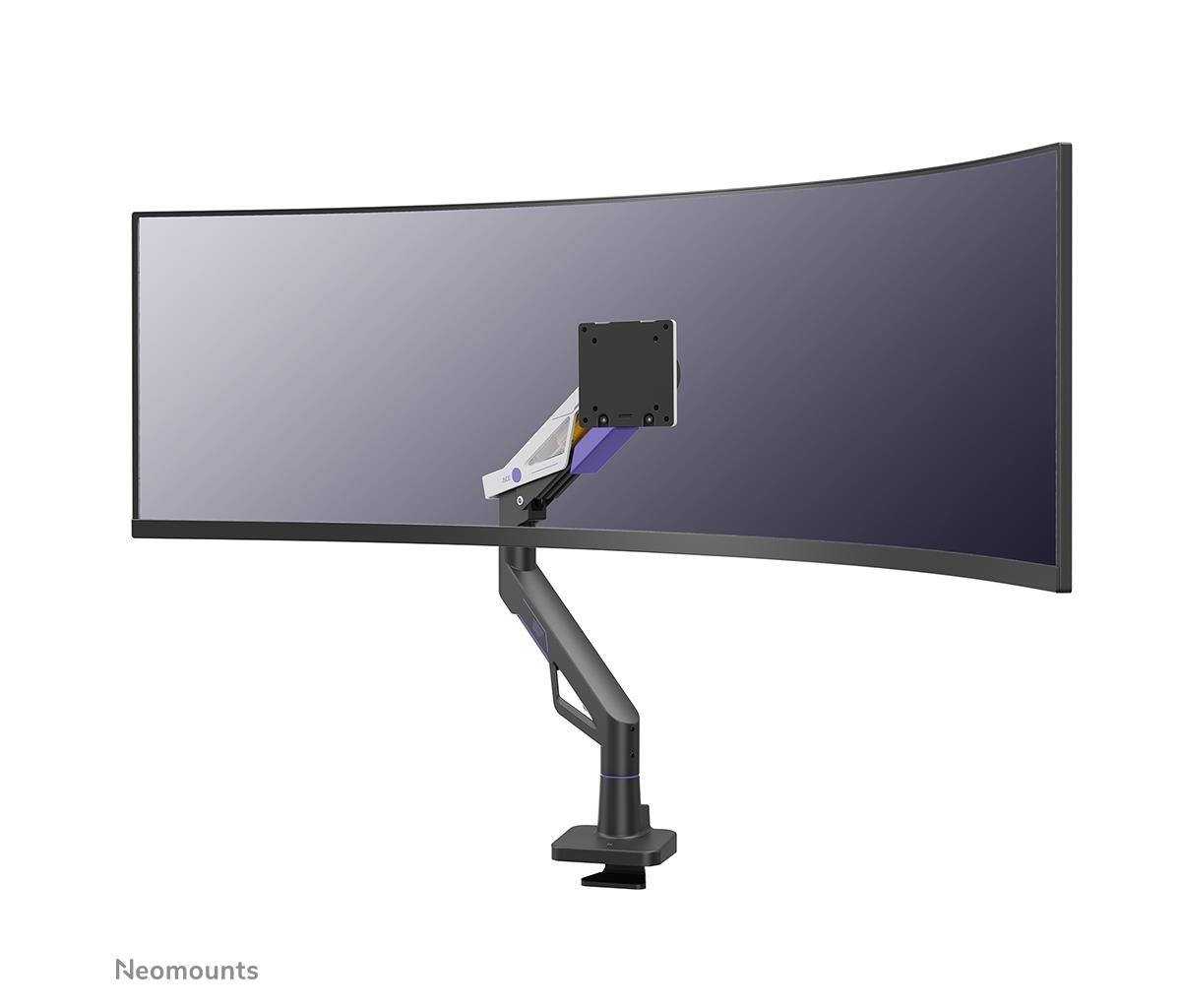

The Neomounts DS70-256BL1 ACE delivers exceptional performance and ergonomic comfort for gamers that want to take their setup to the highest level. Supporting screen sizes up to an impressive 57", including extra-wide models like the Samsung Odyssey G9, this arm is built to handle the most ambitious set-ups. With a heavy-duty weight capacity ranging from 2 to 30 kg (and up to 24 kg for curved monitors), it ensures maximum stability even during intense gaming sessions.
Thanks to its broad VESA compatibility from 75x75 to 200x200, the ACE offers seamless integration with a wide range of monitors. The inclusion of precision tilt functionality allows for finely tuned angle adjustments, reducing screen glare and enhancing viewing comfort no matter your setup. Combined with gas spring height adjustment and depth adjustment, positioning your screen in the ideal position becomes smooth and effortless, supporting better posture and sustained focus during marathon sessions.
For added practicality, the DS70-256BL1 monitor arm includes a smart 180° stop mechanism to prevent contact with nearby walls, ideal for space-constrained installations. The Quick-release VESA system ensures easy monitor mounting, while the included topfix clamp and grommet offer fast and secure installation.
Whether you're engaged in high-speed action, managing tactical operations, or streaming for hours, the full motion DS70-256BL1 ACE monitor arm empowers you with precision control, robust support, and optimum comfort so you can stay locked in and ahead of the competition.
| Mounting | |
| Maximum weight capacity | 30 kg |
| Minimum screen size | 61 cm (24") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 30 kg |
| Maximum weight capacity (per curved/ultra-wide display) | 24 kg |
| Maximum screen size | 144.8 cm (57") |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 200 x 200 mm |
| Panel mounting interface | 100 x 200,100 x 100,200 x 100,200 x 200,75 x 75 |
| Desk thickness (min) | 1.2 cm |
| Desk thickness (max) | 4.5 cm |
| Distance to the wall (min) | 12.3 cm |
| Distance to the wall (max) | 61.9 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 310 - 570 mm |
| Adjustable depth | Yes |
| Depth adjustment range | 90 - 586 mm |
| Width adjustment | 99.2 cm |
| Tilt angle range | -45 - 70ø |
| Swivelling | Yes |
| Swivel angle range | -90 - 90ø |
| Rotating | Yes |
| Angle of rotation | 180ø |
| Cable management | Yes |
| Design | |
| Housing material | Aluminium |
| Product colour | Black |
| Weight & dimensions | |
| Width | 130 mm |
| Depth | 123 mm |
| Height | 675 mm |
| Weight | 4.7 kg |
| Packaging data | |
| Package width | 155 mm |
| Package depth | 143 mm |
| Package height | 423 mm |
| Other features | |
| Minimum weight | 2 kg |
| Width adjustment range | 0 - 992 mm |
| Warranty period | 5 year(s) |
| Logistics data | |
| Master (outer) case width | 356 mm |
| Master (outer) case length | 290 mm |
| Master (outer) case height | 510 mm |
| Master (outer) case gross weight | 17.6 kg |
| Products per master (outer) case | 4 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 14.2 kg |
| Harmonized System (HS) code | 7616999099 |
| Warranty | |
| Base Warranty | Non Non |
