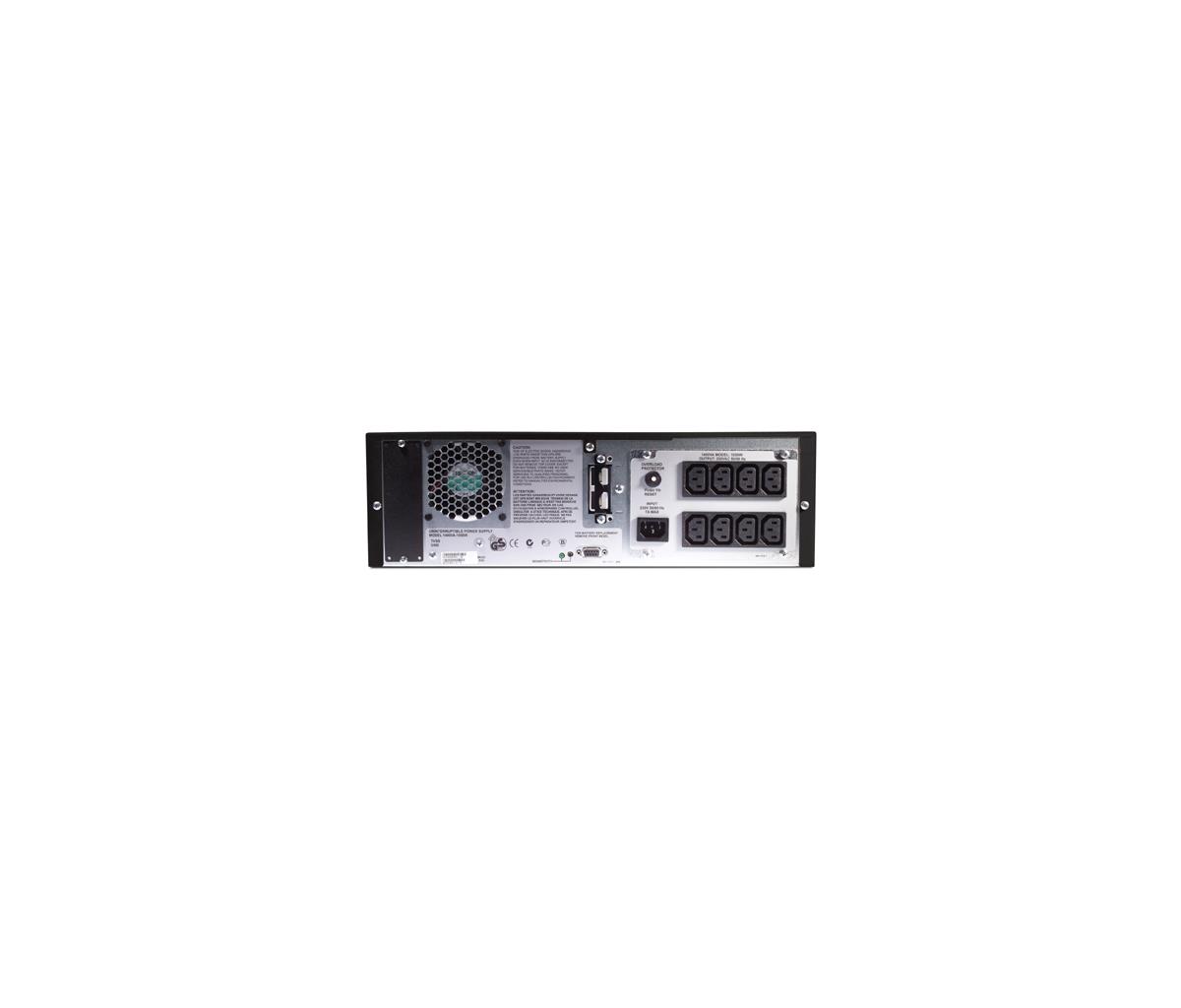

Smart UPS Xl 1400va Rm 3u 230v (black)
ITCurry #: 02802980 | Article #: SU1400RMXLIB3U-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
APC Smart-UPS XL, 1400VA/1050W, Input 230V/Output 230V, Interface Port DB-9 RS-232, Extended runtime model, Rack Height 3 U
Includes: CD with software, Rack Mounting support rails, Smart UPS signalling RS-232 cable, User Manual
General Features:
Adjustable voltage sensitivity,
Adjustable voltage-transfer points,
Audible Alarms,
Automatic restart of loads after UPS shutdown,
Automatic self-test,
Boost and Trim Automatic Voltage Regulation (AVR),
Cold-start capable,
Disconnected battery notification,
Generator Compatible,
Hot-swappable batteries,
Intelligent Battery Management,
LED status indicators,
Network manageable,
Plug-and-Play external batteries,
Power conditioning,
Predictive failure notification,
Resettable circuit breakers,
Safety-agency approved,
Scalable runtime,
Serial Connectivity,
SmartSlot,
Temperature-compensated battery charging.
| Features | |
| Output power capacity | 1.4 kVA |
| Output power | 1050 W |
| Surge energy rating | 480 J |
| Emergency Power Off (EPO) | Y |
| Battery | |
| Typical backup time at full load | 6.6 min |
| Typical backup time at half load | 23.4 min |
| Replacement battery cartridge | RBC25 |
| Design | |
| Cable length | 1.8 m |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -15 - 45 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Weight | 32 kg |
| Other features | |
| I/O ports | Available Smart Slot Interface Quantity - 1 |
| Battery type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Interface | DB-9 RS-232 |
| Output connections | (8) IEC 320 C13 (3) IEC Jumper |
| Input connection type | IEC-320 C14 |
| Dimensions (WxDxH) | 430 x 390 x 130 mm |
| Nominal output voltage | 230 V |
| Output voltage note | 47-53Hz for 50Hz nominal, 57-63Hz for 60Hz nominal |
| Filtering description | 0.3% IEEE/UL 1449 |
| Nominal input voltage | 230 V |
