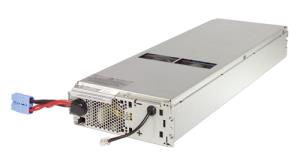

Smart UPS 1500va Rm 2u 120v Shipboard
ITCurry #: 02805218 | Article #: SUA1500R2X93-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
- Gives higher application availability by correcting low and high voltage conditions without using the battery.
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Automatically starts up the connected equipment upon the return of utility power.
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Ensures clean, uninterrupted power to protected equipment when generator power is used.
- Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
- Quickly understand unit and power status with visual indicators.
- Warns when a battery is not available to provide backup power.
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.
| Features | |
| Output power capacity | 1.44 kVA |
| Output power | 980 W |
| Input frequency | 60 Hz |
| Surge energy rating | 459 J |
| Audible alarm(s) | Yes |
| Battery | |
| Typical backup time at full load | 7.4 min |
| Typical backup time at half load | 26.5 min |
| Battery recharge time | 3 h |
| Replacement battery cartridge | RBC24 |
| Design | |
| Cable length | 2.44 m |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -15 - 45 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Weight | 28.6 kg |
| Package weight | 31.9 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Interface | DB-9 RS-232 |
| Input connection type | NEMA 5-15R |
| Dimensions (WxDxH) | 483 x 457 x 89 mm |
| Nominal output voltage | 120 V |
| Nominal input voltage | 120 V |
| Package dimensions (WxDxH) | 594 x 603 x 251 mm |
