| Communications
& Management |
| Interface
port |
DB-9
RS-232 , SmartSlot |
| Available
Smart Slot Interface Quantity |
1 |
| Control
panel |
LED
status display with load and battery bar-graphs and On Line : On Battery :
Replace Battery : Overload and Bypass Indicators |
| Audible
alarm |
Alarm
when on battery : distinctive low battery alarm : overload continuous tone
alarm |
| Output |
| Output
power capacity |
1,000 VA |
| Output
power capacity |
700 Watts |
| Max
Configurable Power |
1,000 VA |
| Max
Configurable Power |
700 Watts |
| Nominal
output voltage |
230 V |
| Output
Voltage Note |
Configurable
for 220 : 225 : 230 or 240 |

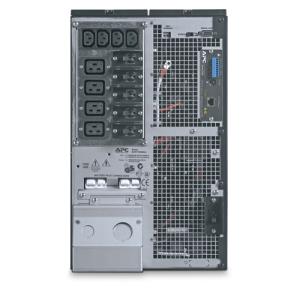

| Output
Connections |
- (6)IEC 320 C13
- (2)IEC Jumpers
|
| Input |
| Nominal
input voltage |
230 V |
| Input
frequency |
50/60
Hz +/- 3 Hz (auto sensing) |
| Input
Connection Type |
IEC-320
C14 |
| Input
voltage range for main operations |
160 -
280 V |
| Input
voltage adjustable range for main operations |
100 -
280 V |
| Surge
Protection and Filtering |
| Surge
energy rating |
420
joules |
| Filtering |
Full
time multi-pole noise filtering : 0.3% IEEE surge let-through : zero
clamping response time : meets UL 1449 |
| Runtime |
| Typical
backup time at half load |
28.0 minutes
(350 Watts) |
Typical
backup time
at full load |
11.1 minutes
(700 Watts) |
| Runtime
Chart |
Smart-UPS
RT |
| Batteries |
| Battery
type |
Maintenance-free
sealed Lead-Acid battery with suspended electrolyte : leakproof |
| Replacement
battery cartridge |
(1)
RBC31 |
| Physical |
| Maximum
height dimensions |
3.35
inches ( 8.51 cm) |
| Maximum
width dimensions |
17.00
inches ( 43.18 cm) |
| Maximum
depth dimensions |
19.00
inches ( 48.26 cm) |
| Net
weight |
50.60 lbs
( 23.00 kg) |
| Color |
Black |
| Units
per Pallet |
12.0 |
| Environmental |
| Operating
Environment |
0 -
40 ›C (32 - 104›F) |
| Operating
Relative Humidity |
0 -
95% |
| Operating
Elevation |
0-10000 feet
(0-3000 m) |
| Storage
Temperature |
-20 -
50 ›C (-4 - 122›F) |
| Storage
Relative Humidity |
0 -
95% Non-condensing |
| Storage
Elevation |
0-50000
feet (0-15000 m) |
| Online
thermal dissipation |
239 BTU/hr |
