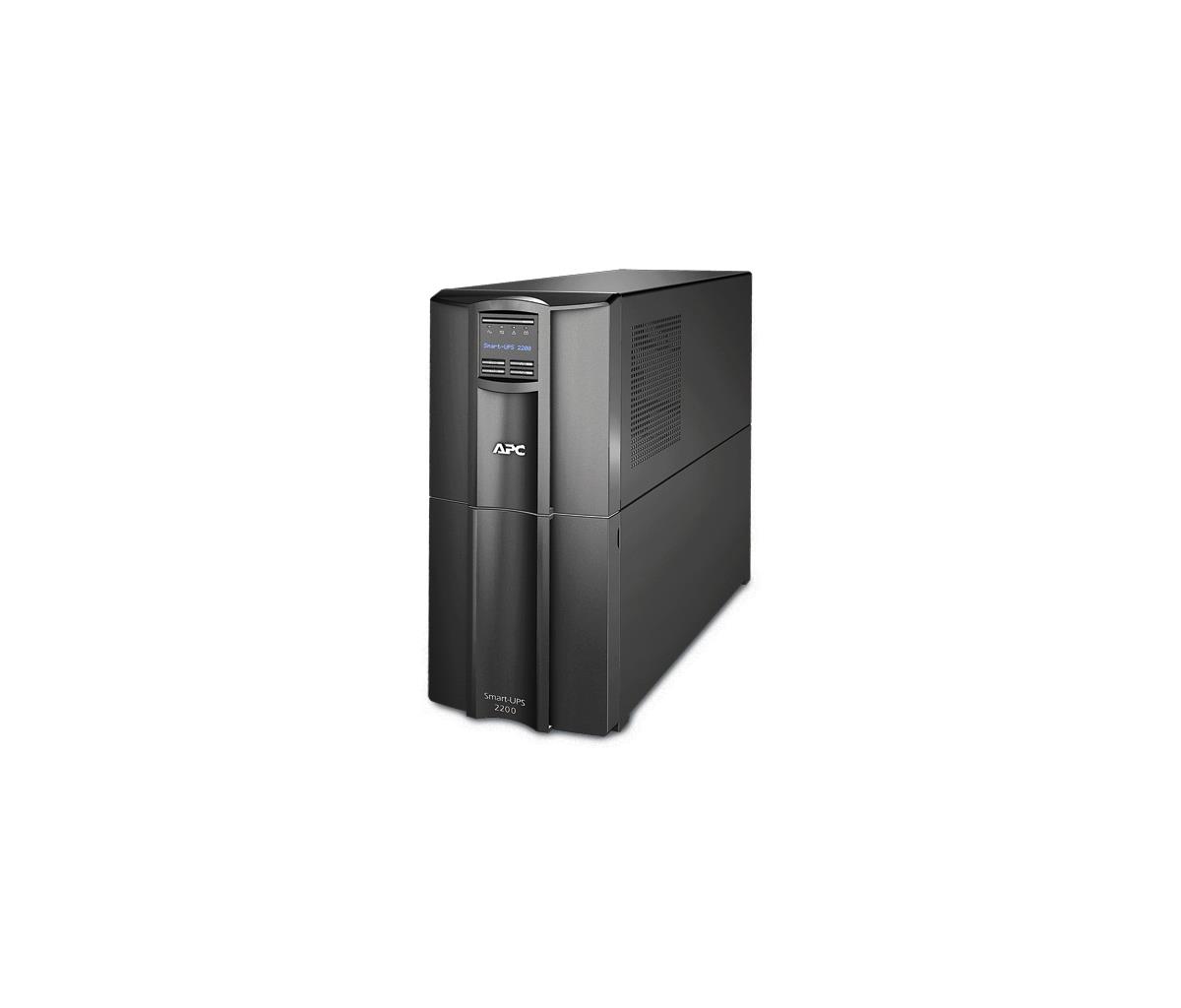

Bundle / Smart UPS 2200va LCD 230v + Essential SurgeArrest 5 Outlets 230V France
ITCurry #: 0280F860 | Article #: SMT2200I?KIT1-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
StruxureWare Central compatible:
Enables centralized management via StruxureWare Central.
High online efficiency:
Reduces utlility costs, generates less heat.
Green mode:
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter:
Provides actual kilowatt hours of usage for energy conscious users.
Predictive replace battery date:
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Intuitive LCD interface:
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Single switched outlet group:
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
Pure sine wave output on battery:
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Sequenced network shutdown and reboot:
Customize network shutdown and reboot sequence of connected servers and UPSs.
Cold-start capable:
Provides temporary battery power when the utility power is out.
SmartSlot:
Customize UPS capabilities with management cards.
Temperature-compensated battery charging:
Prolongs battery life by regulating the charge voltage according to battery temperature.
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 2.2 kVA |
| Output power | 1980 W |
| Waveform | Sine |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Input frequency | 47/63 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 365 J |
| Efficiency | 97.9% |
| Emergency Power Off (EPO) | Yes |
| Noise level | 45 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Auto-restart | Yes |
| Ports & interfaces | |
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 9 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Design | |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -15 - 45 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, EN 50091-1, EN 50091-2, VDE REACH |
| Weight & dimensions | |
| Width | 197 mm |
| Depth | 544 mm |
| Height | 435 mm |
| Weight | 48.8 kg |
| Packaging data | |
| Package width | 381 mm |
| Package depth | 762 mm |
| Package height | 699 mm |
| Package weight | 61.9 kg |
| Other features | |
| Battery type | RBC55 |
| Output connections | 8 x C13 & 1 x C19 |
| Input connection type | BS1363A & IEC-320 C20 & Schuko CEE 7/EU1-16P |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Warranty | |
| Base Warranty | Non Non |
